Idle Speed/Ignition Timing/Idle Mixture Ratio Inspection

Start with CHART 1 and continue until re-directed by the charts.

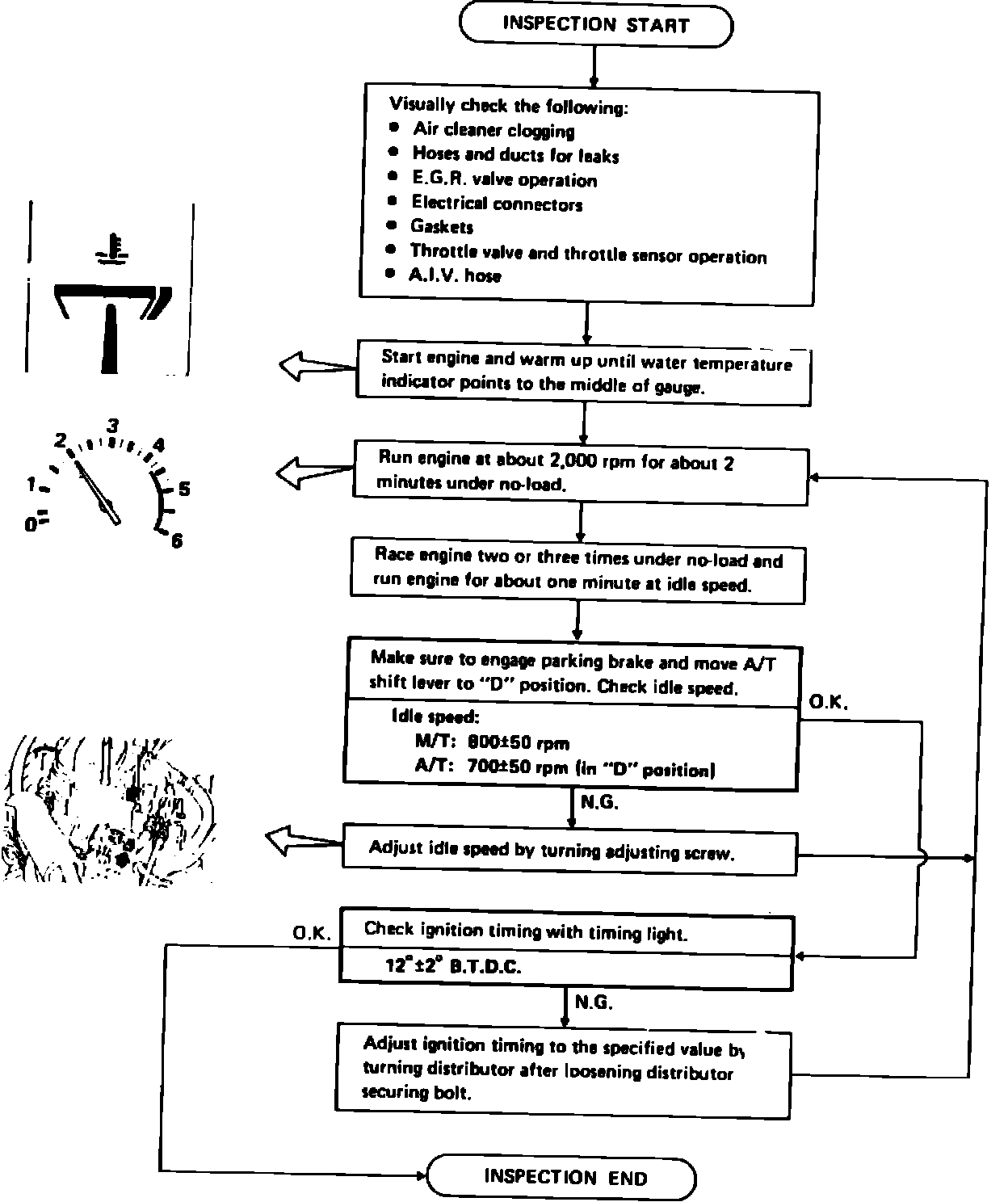

Fig. 9a Testing mixture ratio feedback system.:

CHART 1

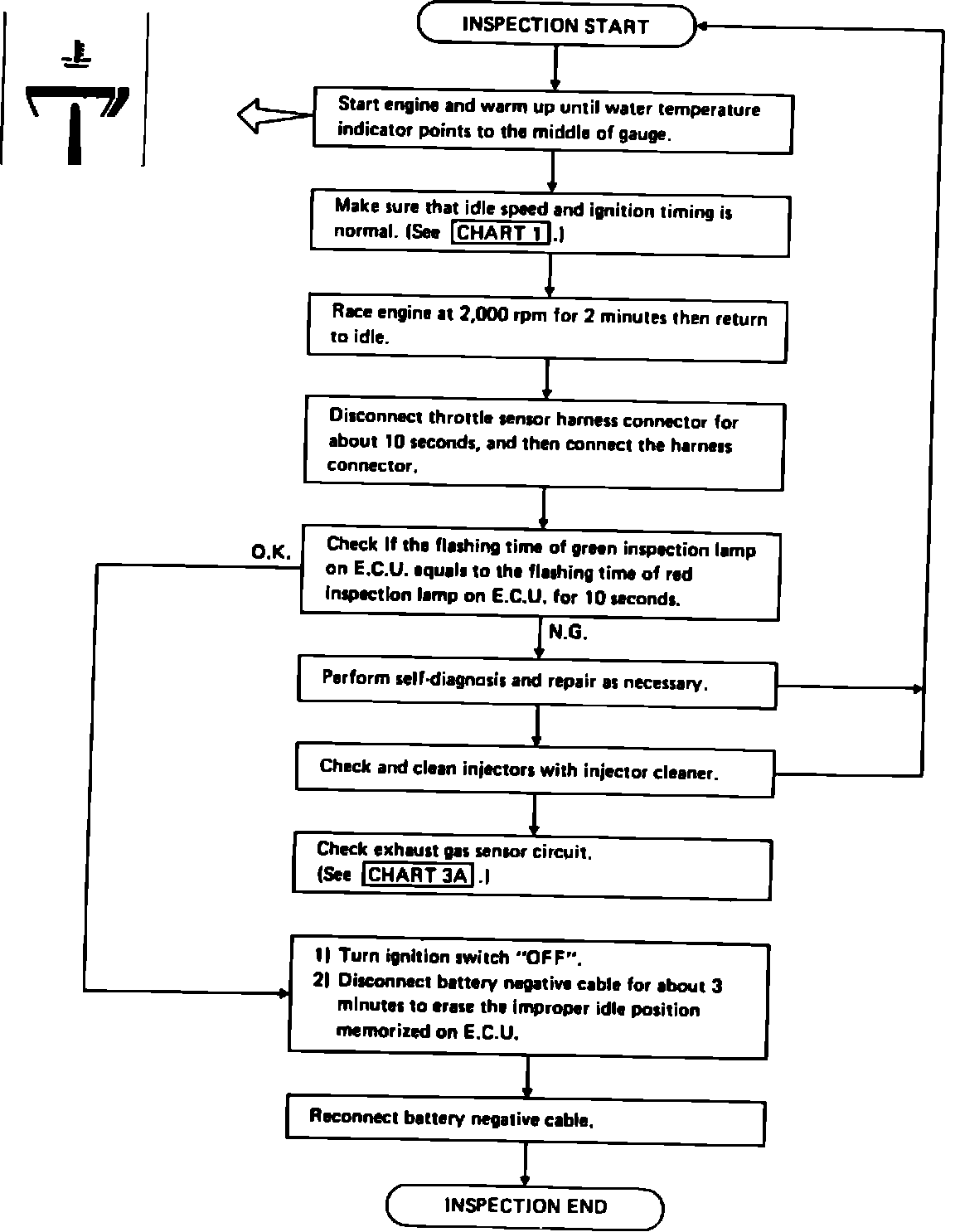

Fig. 9c Testing mixture ratio feedback system.:

CHART 2

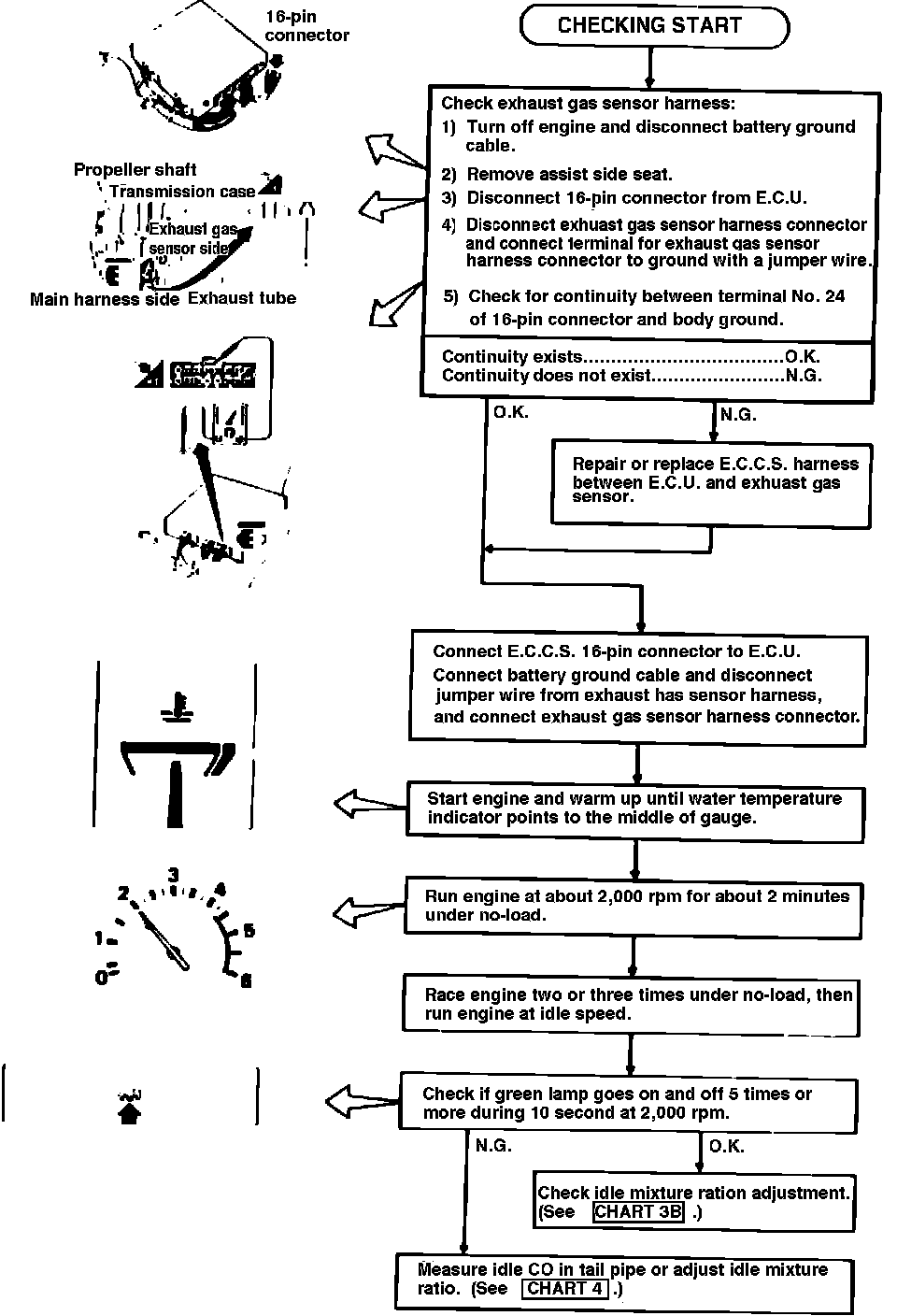

Fig. 9d Testing mixture ratio feedback system.:

CHART 3A

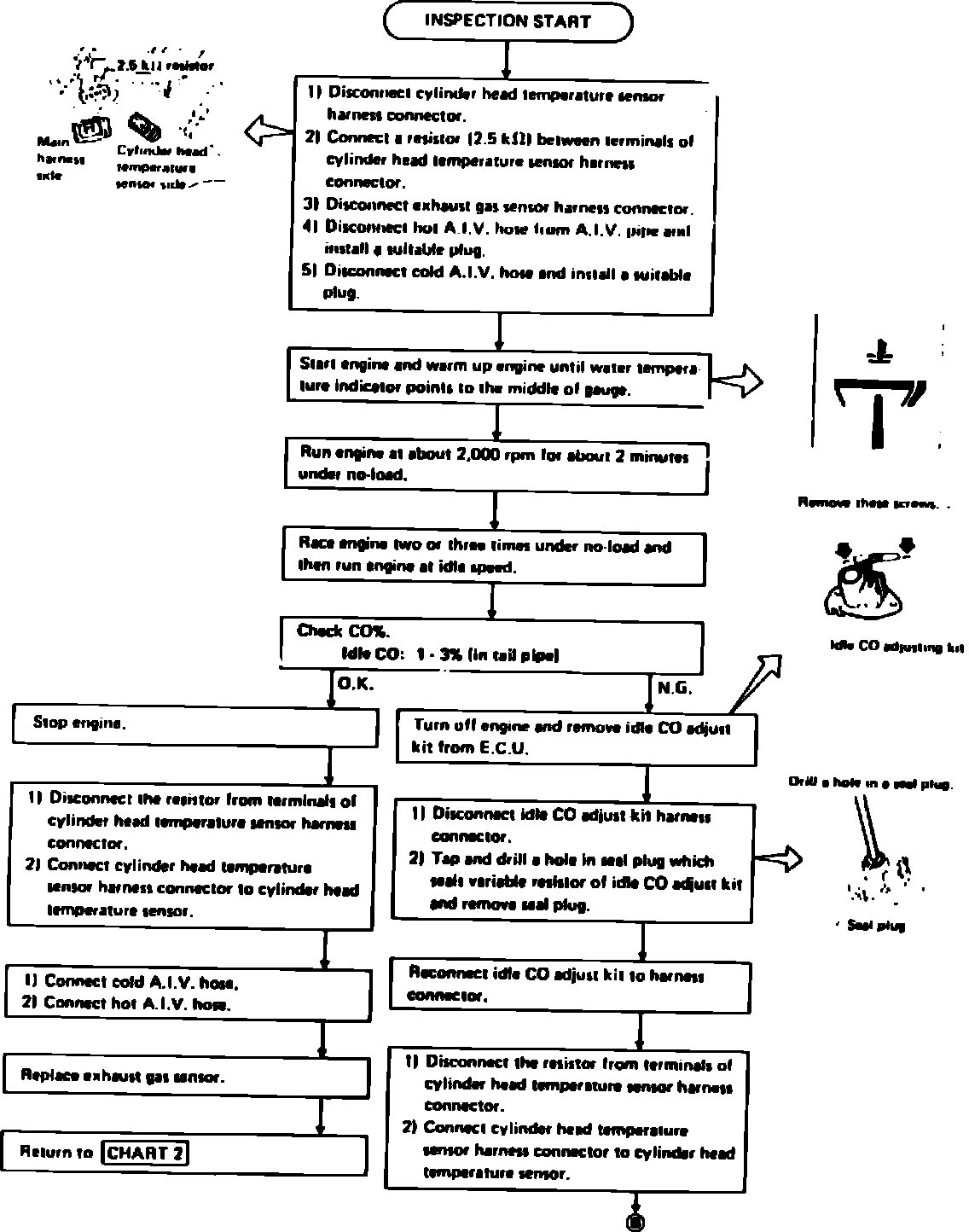

Fig. 9f Testing mixture ratio feedback system.:

Fig. 9g Testing mixture ratio feedback system.:

CHART 3B

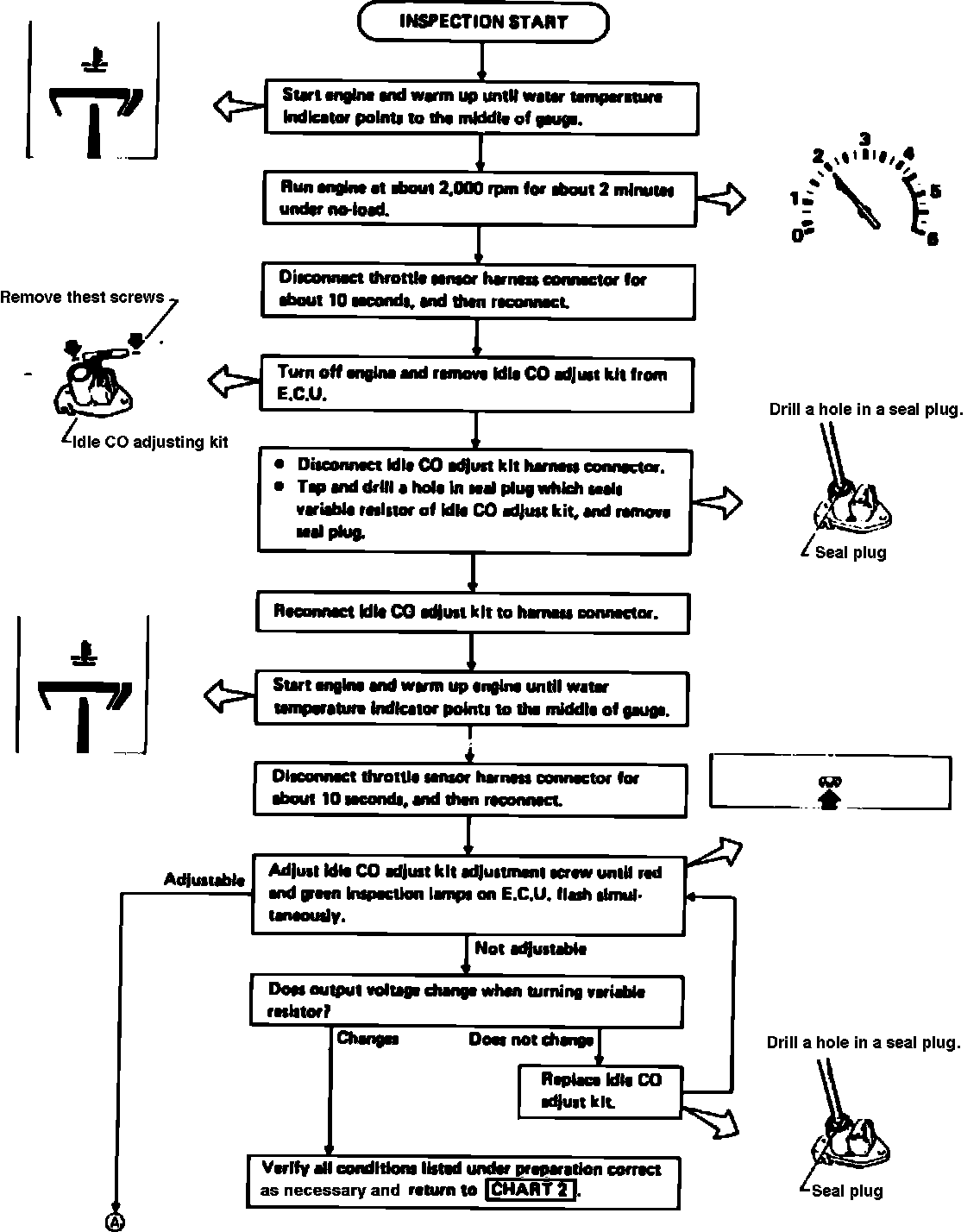

Fig. 9h Testing mixture ratio feedback system.:

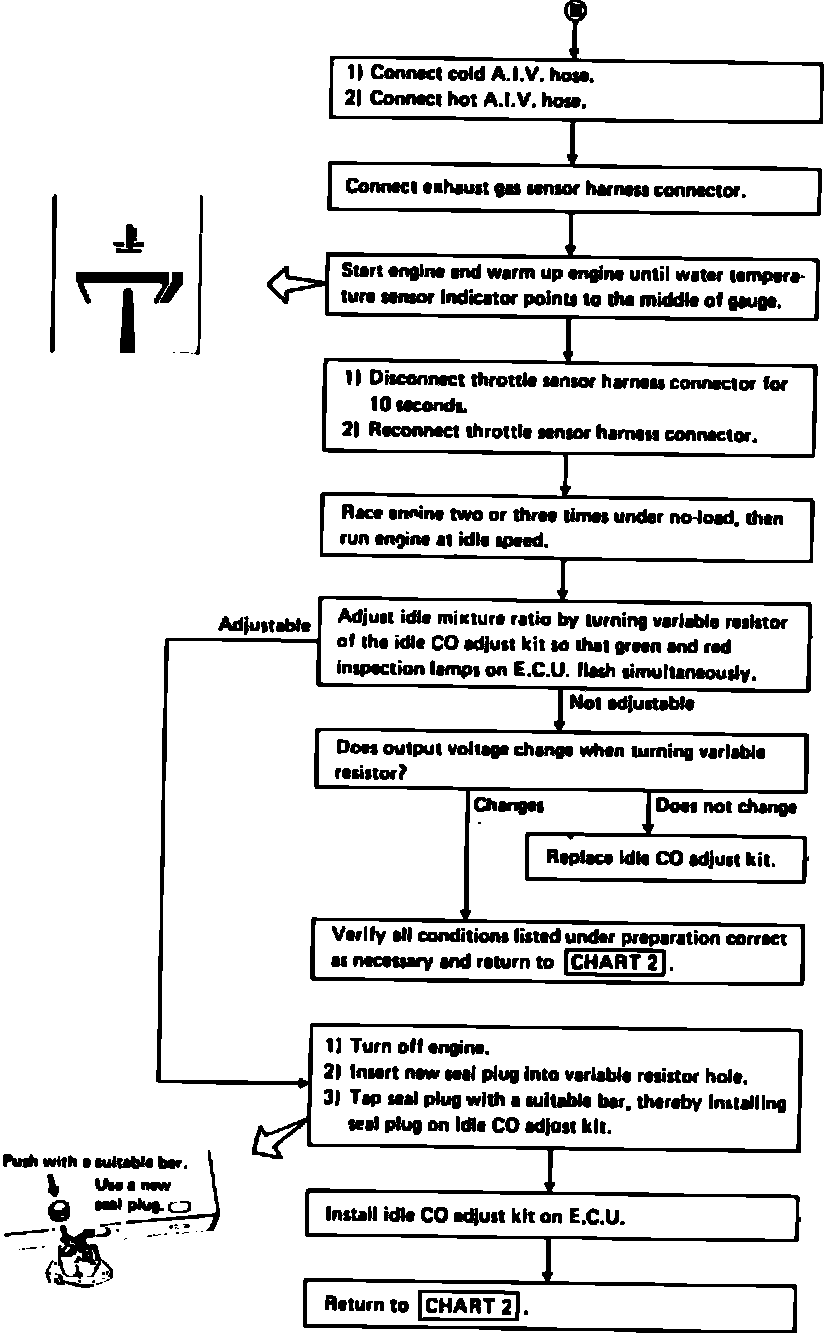

Fig. 9i Testing mixture ratio feedback system.:

CHART 4
