Performance Test Diagnosis
Performance Test Diagnosis

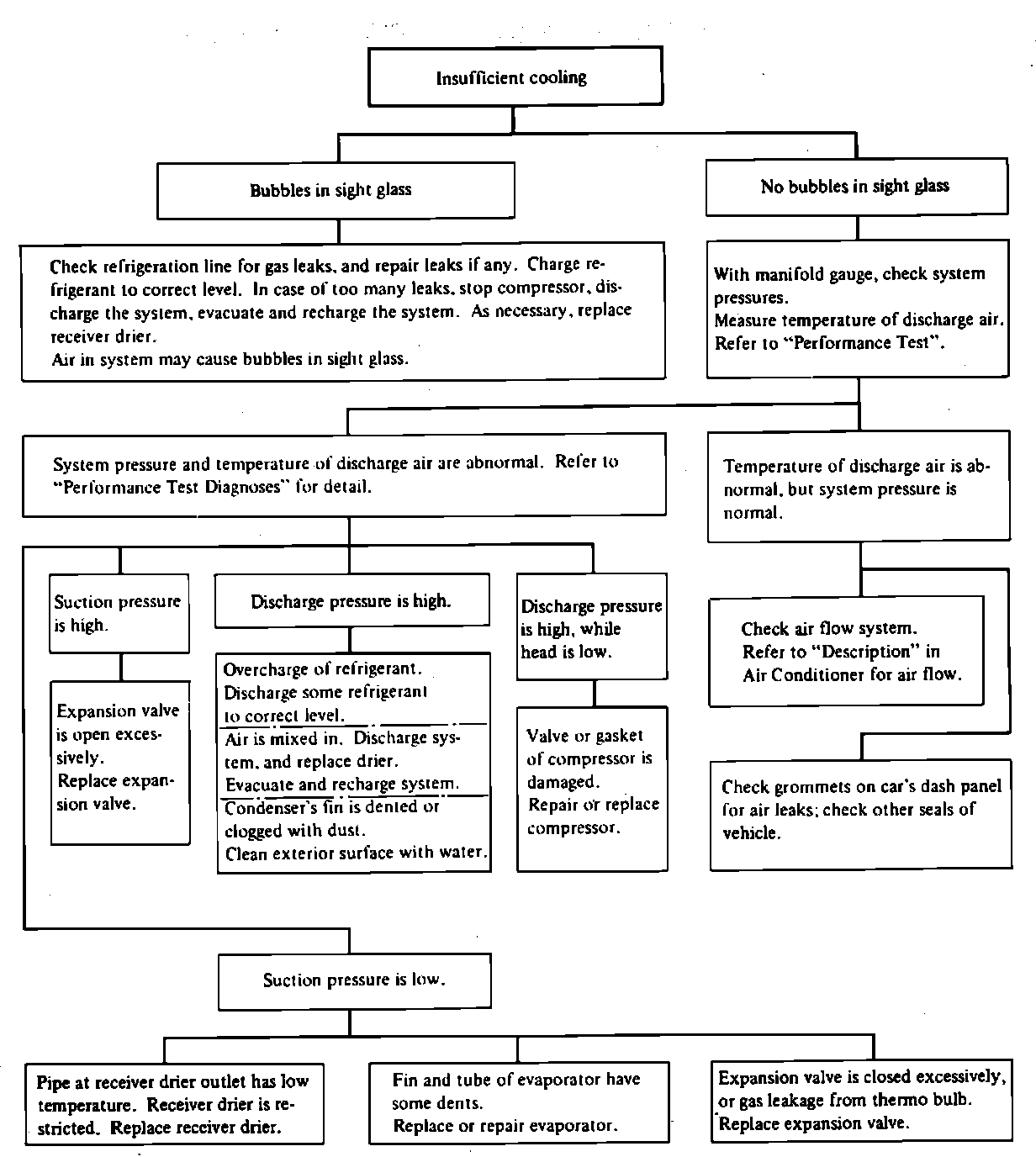

Fig. 41a Manual Heater & A/C diagnosis, air conditioner (part 1 of 2).:
