Compressor Clutch Does Not Engage

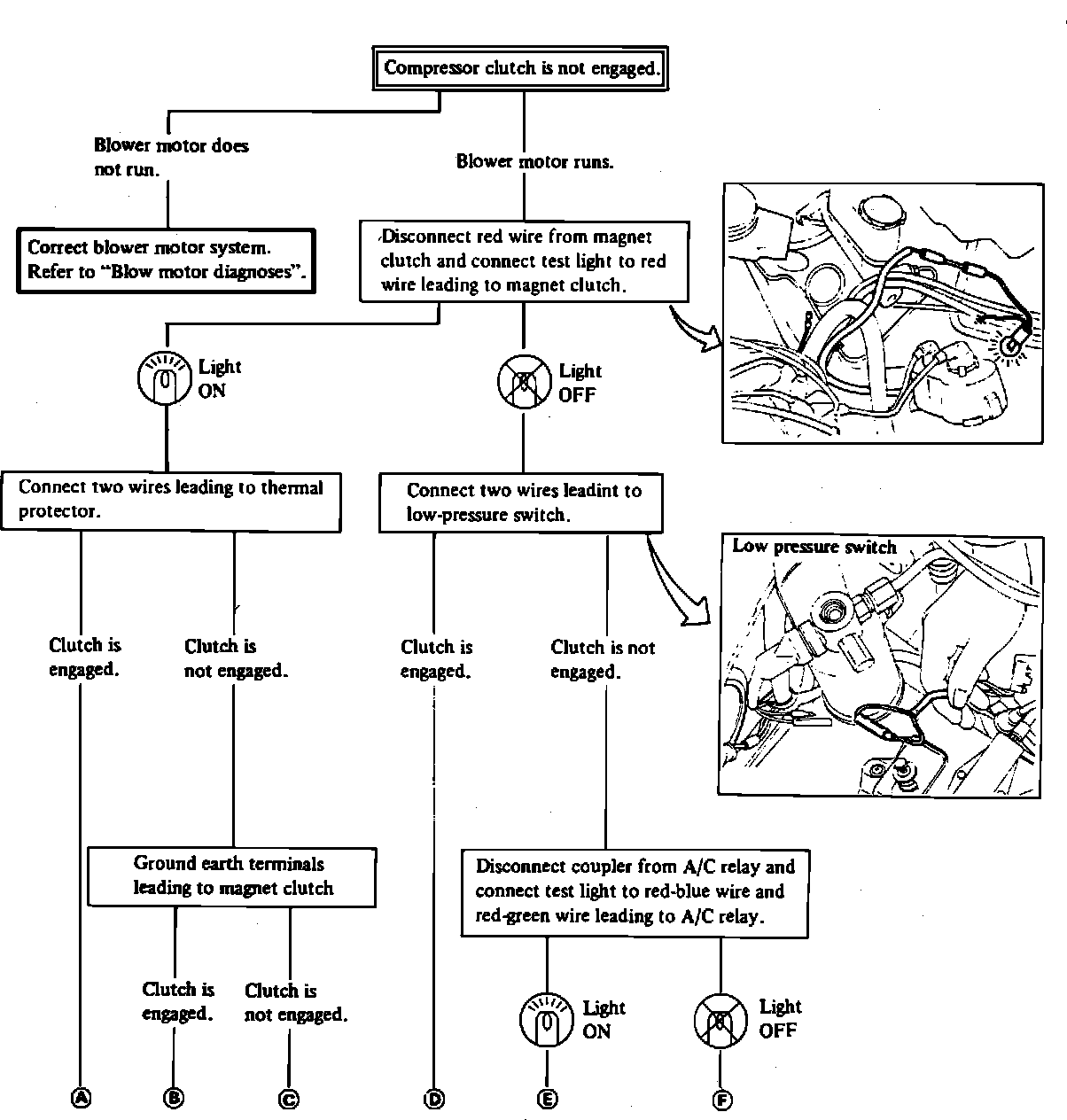

Fig. 44a Manual Heater & A/C diagnosis, compressor clutch (part 1 of 2).:



Fig. 44b Manual Heater & A/C diagnosis, compressor clutch (part 1 of 2).:
