Air Conditioner Compressor - Modifications
87nissan091986.5-1987 Truck
Models & Pathfinder
Section Heater & Air Conditioner
Classification HA87-015
Bulletin No. TS87-129
Date August 10, 1987
AIR CONDITIONER COMPRESSOR MODIFICATIONS
APPLIED MODEL: 1986.5-1987 Truck and 1987 Pathfinder
SERVICE INFORMATION
The air conditioner compressor assembly of the Applied model vehicles has been modified with a new clutch assembly. Use the following interchangeability information when servicing the compressor assembly or compressor clutch assembly of the Applied Models.
INTERCHANGEABILITY INFORMATION
When replacing the clutch assembly, it is important to identify if the compressor assembly is the former or new style so that the proper part is installed. Use the following information to identify the compressor assembly or clutch assembly.
FORMER AND NEW COMPRESSOR IDENTIFICATION
To determine if the compressor is the former style or the new style, locate the label on the side of the compressor and compare the Nissan part number with the information on page 1/3 of this bulletin. Order the appropriate clutch assembly for the incident compressor.
If there is no label on the compressor, measure the thickness of the compressor mounting ears as shown below.
Rib Thickness Of Compressor Mounting Ears
RIB THICKNESS STYLE COMPRESSOR ASSEMBLY PART NUMBER
Approx. 5 mm Former 92600-01G00 (Z24i) or 92600-09G00 (VG30i)
(0.197 in.)
Approx. 6 mm New 92600-01G01 (Z24i) or 92600-09G01 (VG30i)
(0.236 in.)
FORMER AND NEW CLUTCH ASSEMBLY IDENTIFICATION

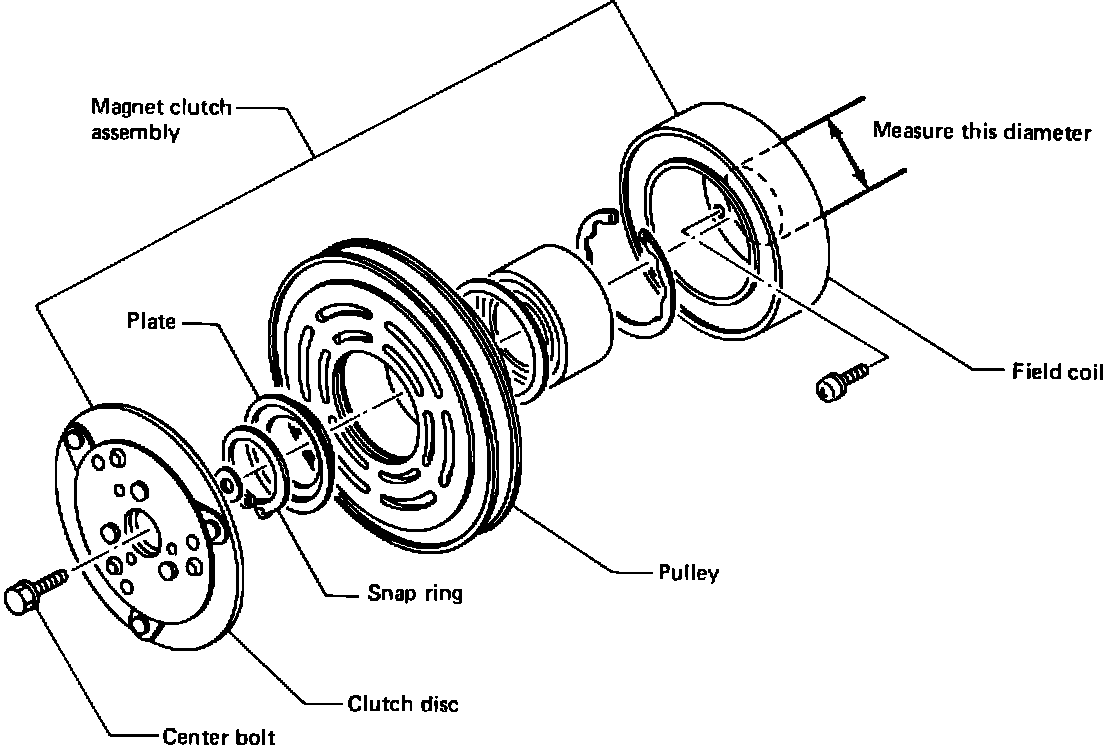

Measure the inside diameter of the field coil where the coil fits over the compressor shaft (not the inside diameter of the coil itself) as shown below.
Field Coil Plate Inside Diameter
INSIDE DIAMETER STYLE CLUTCH ASSEMBLY PART NUMBER
40 mm (1.575 in.) Former 92660-01G00 (Z24i) or 92660-09G00 (VG30i)
44 mm (1.732 in.) New 92660-01G01 (Z24i) or 92660-09G01 (VG30i)
