A/C - Charging Port Modification

86nissan11

Models 1986.5 D21 Truck

Section Air Conditioning

Classification AC86-001

Bulletin No. TS86-001

Date January 13, 1986



A/C CHARGING PORT MODIFICATION, 1986.5 TRUCK


APPLIED MODEL: 1986.5 Truck (D21 Series)

SERVICE INFORMATION

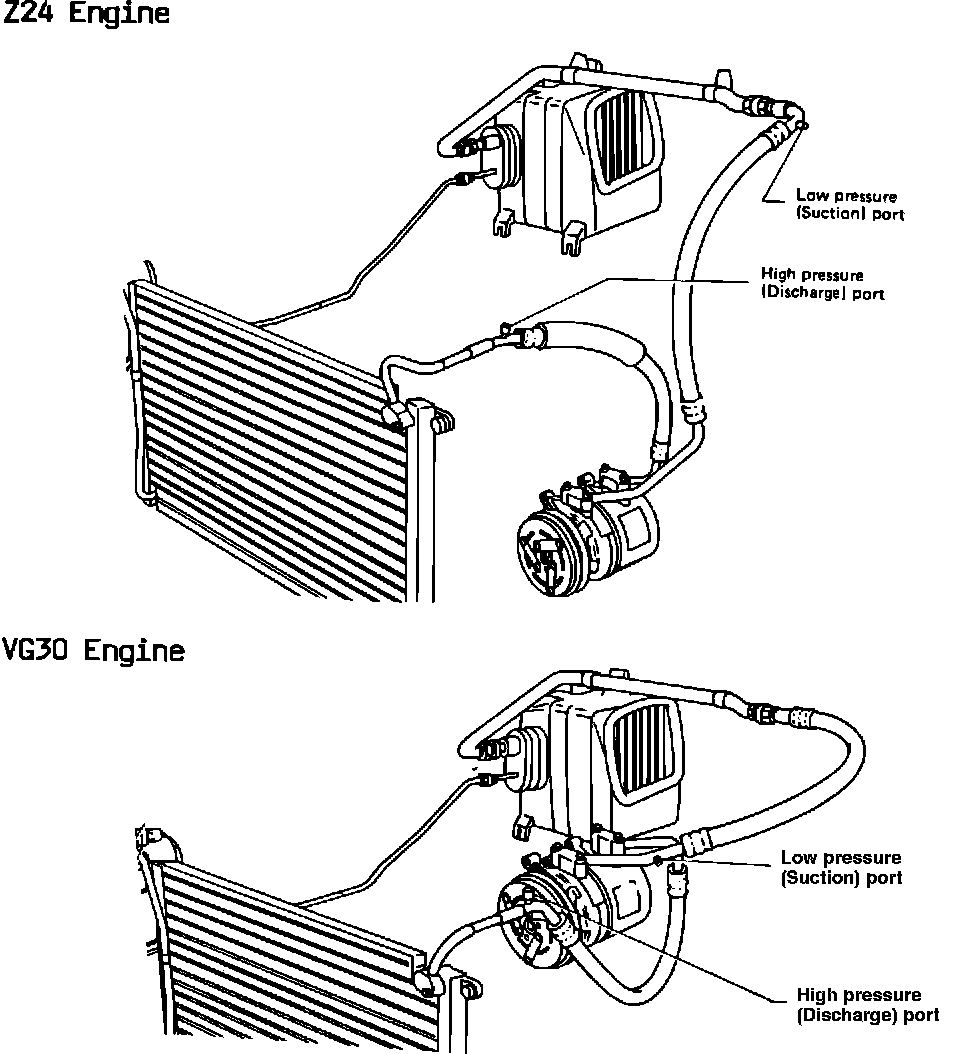

The new 1986.5 Truck has two (2) sizes of air conditioning charging ports. The low pressure side port is 7/16"-20, the same as the 1986 Truck. The high pressure side port has been changed to 3/8"-24 and requires the use of an adaptor to charge, discharge and evacuate the A/C system.
Listed below are the available adaptors for the high pressure side charging port. They may be ordered directly from a Robin Air dealer.


DESCRIPTION MANUFACTURER TYPE PART NUMBER

CHARGING QUICK-COUPLER 10961
PORT ROBIN AIR
ADAPTOR SCREW-ON 10470
TOOL


NOTE: All future new model Nissan vehicles will have two (2) sizes of air conditioning charging ports [7/16"-20 (low side) and 3/8"-24 (high side)].
