Nissan-Datsun
>>
1986
>>
D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i)
>>
Repair and Diagnosis
>>
Diagrams
>>

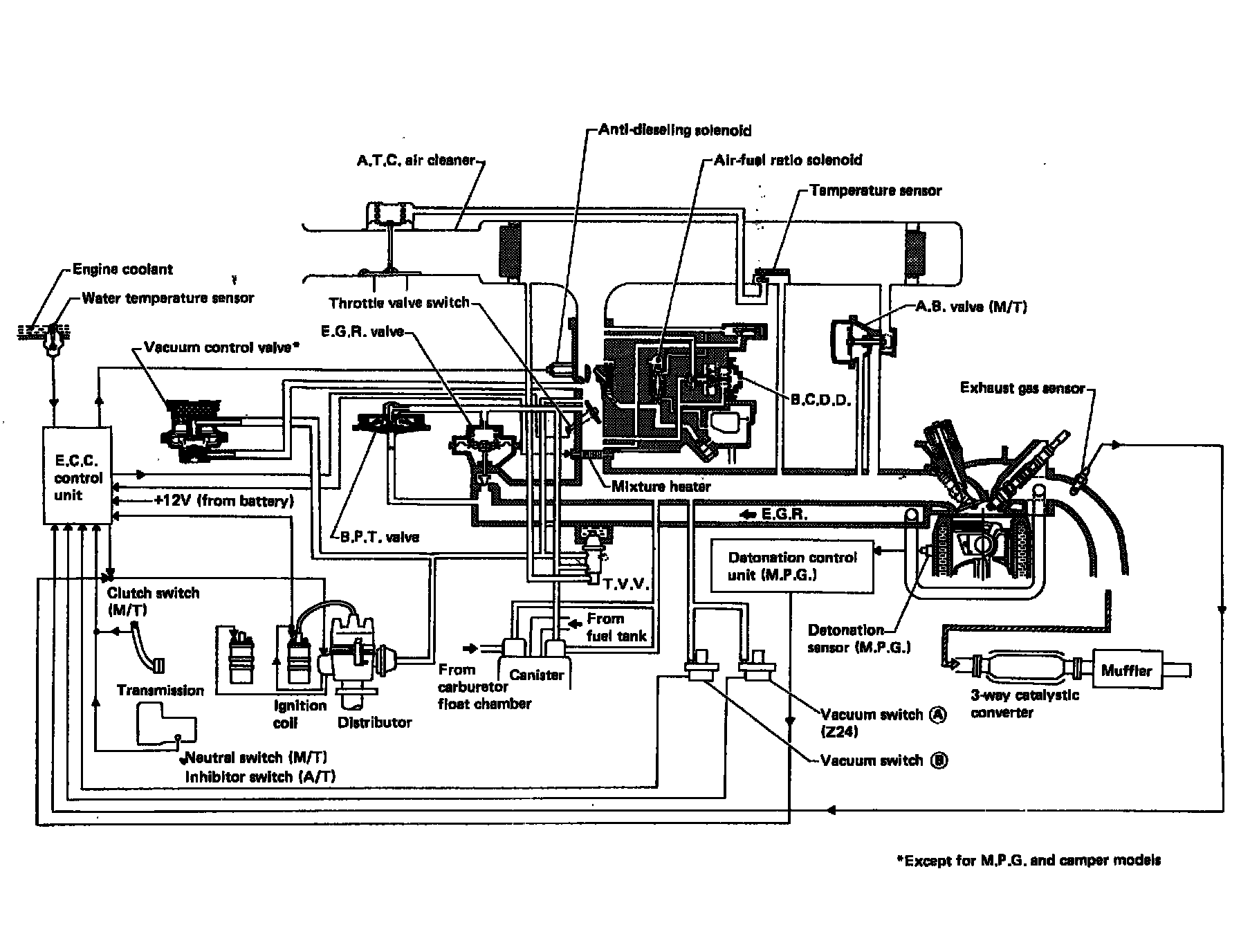

Vacuum and Vapor Hose Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Exhaust Gas Recirculation System
Exhaust Gas Recirculation System
Engine And Emission Control Systems:
