Home >> Nissan-Datsun >> 1986 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> Less Intermittent Wipers

Less Intermittent Wipers

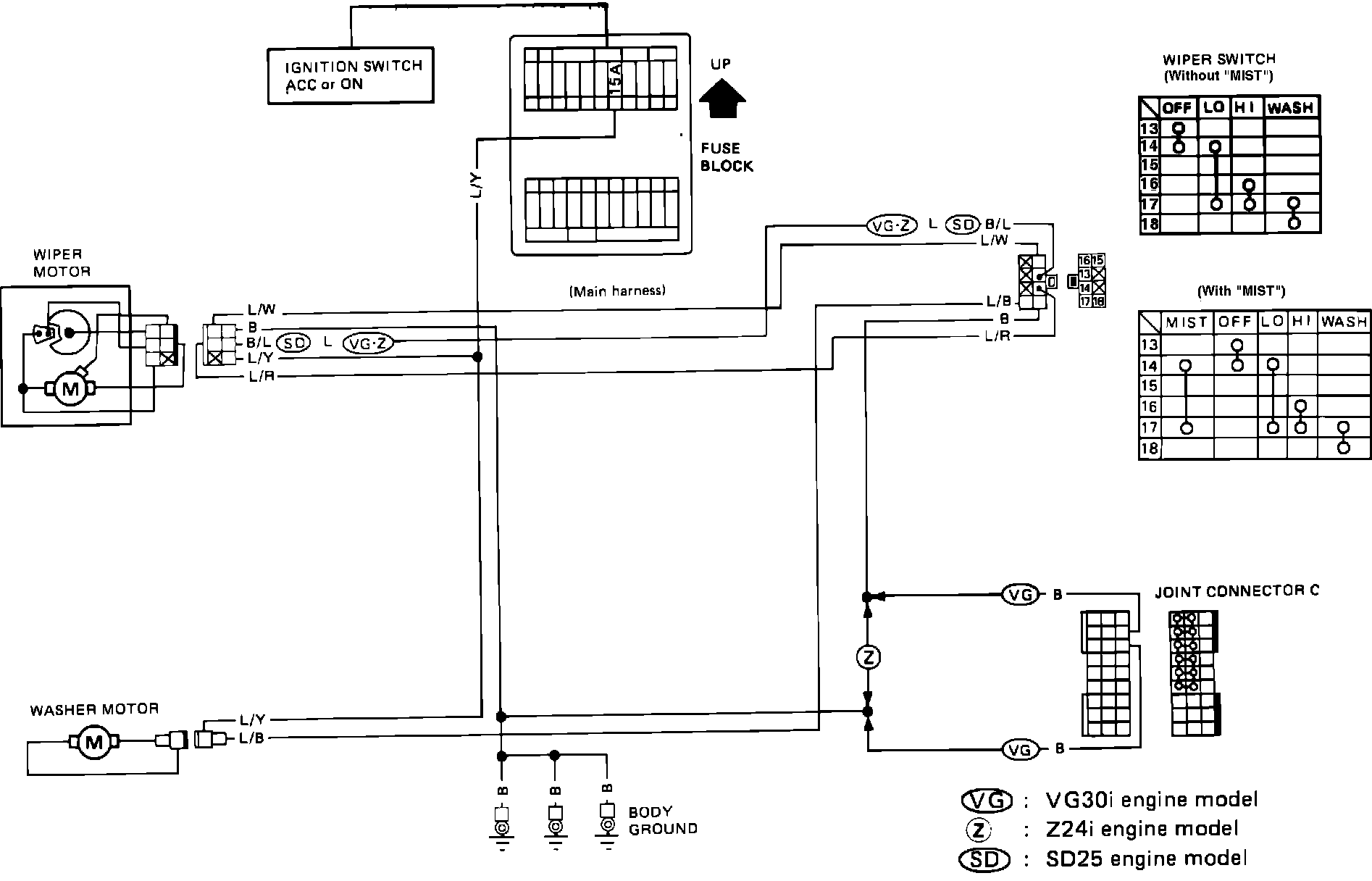

Fig. 46 Windshield Washer & Wiper Wiring Circuit. Less Intermittent Wiper:
