Power Window Wiring Circuit

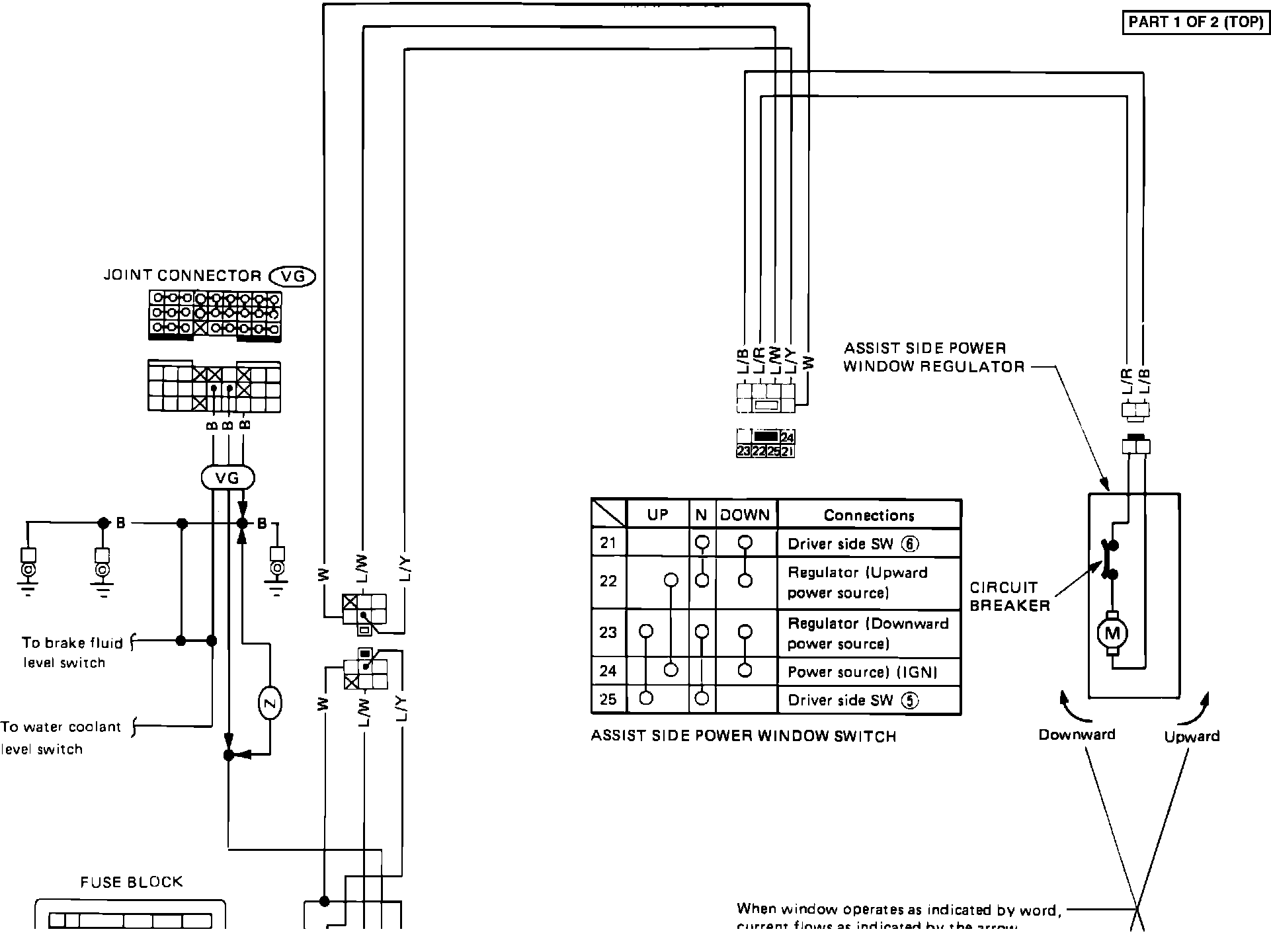

Fig. 32a Power Windows Wiring Circuit:

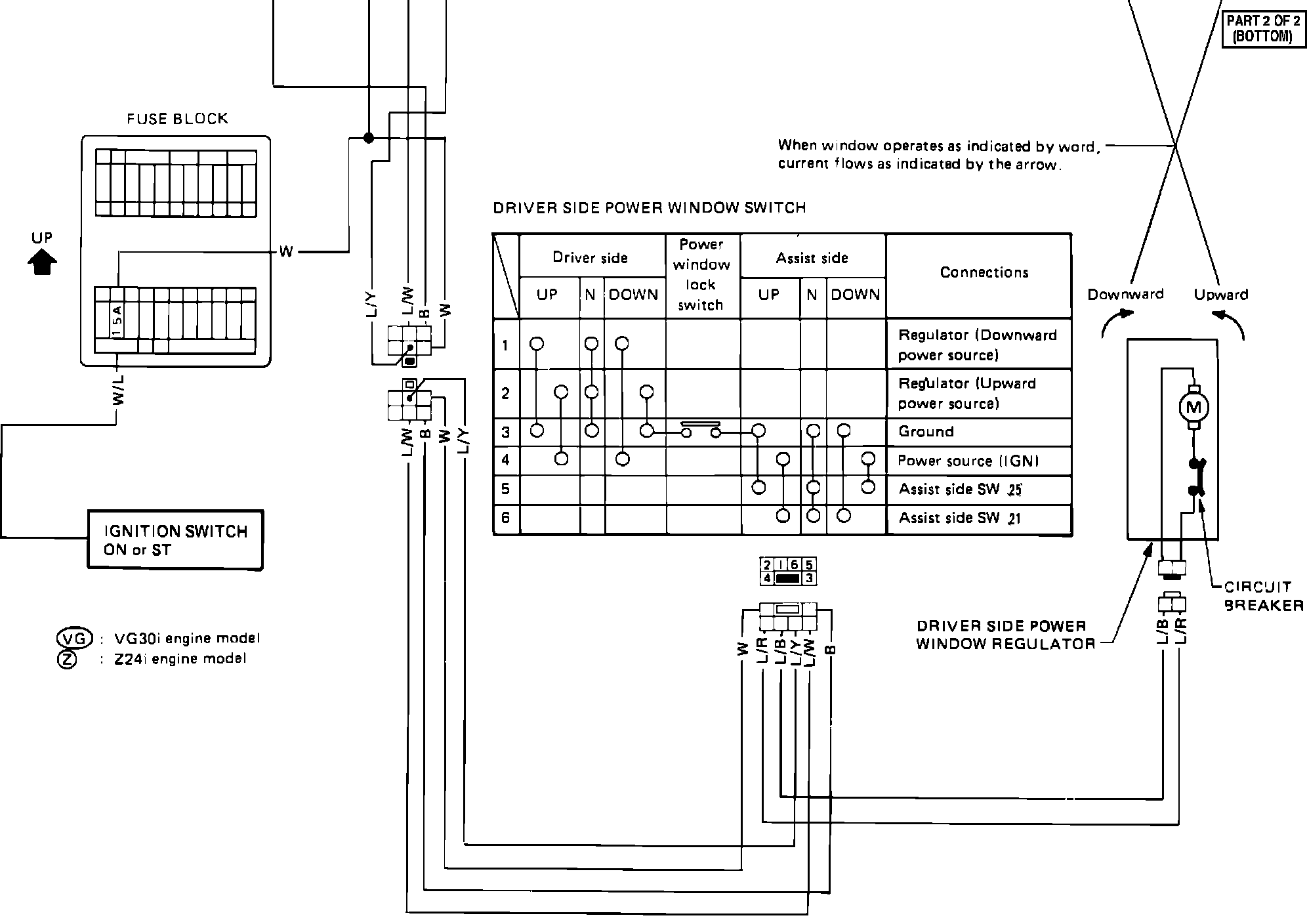

Fig. 32b Power Windows Wiring Circuit:
