Nissan-Datsun
>>
1986
>>
D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
Powertrain Management

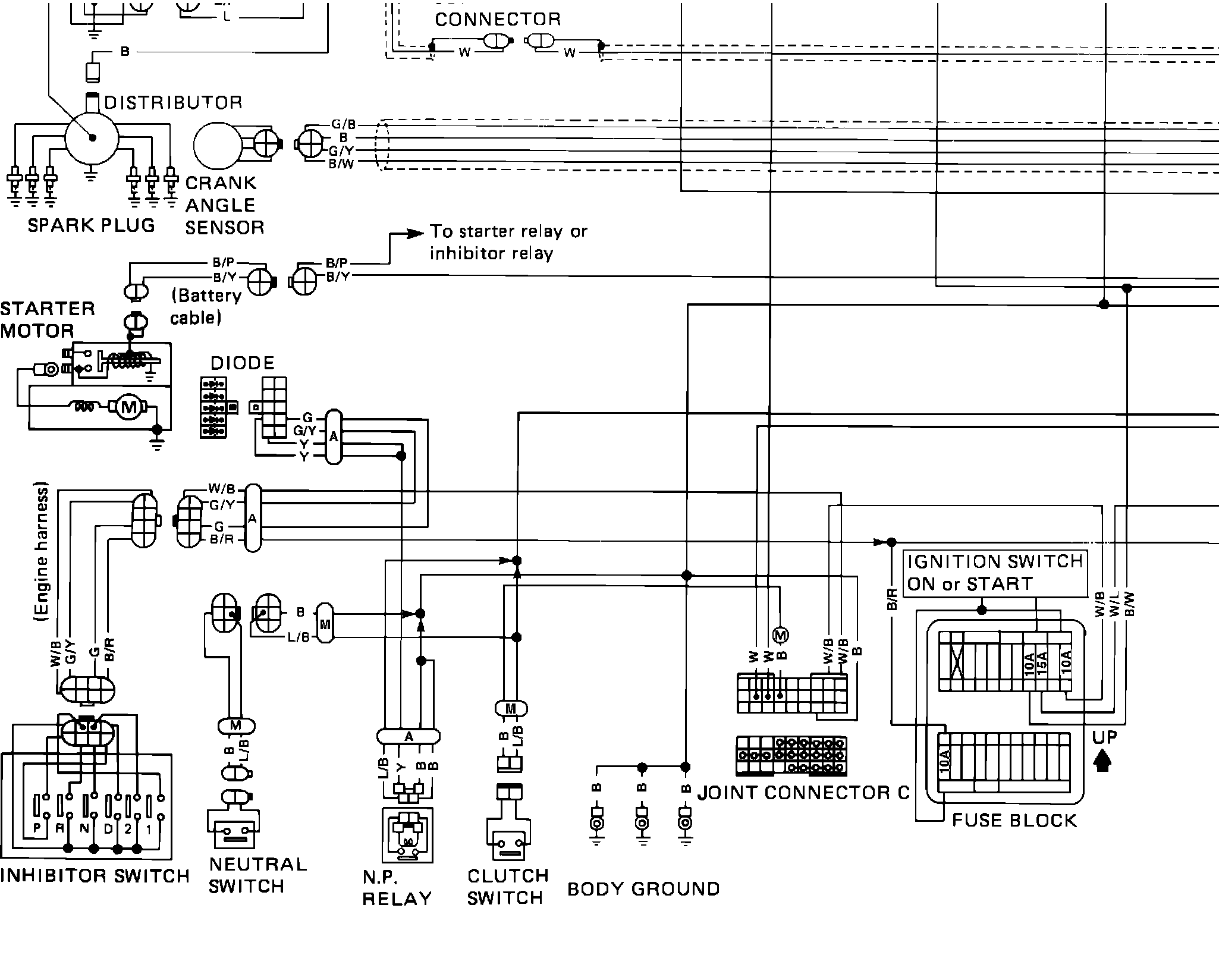

\�>��>Z=�>Fig. 18f Electronically Concentrated Engine Control System (E.C.C.S.) Wiring Circuit. VG30i Engine (Part 6 of 6):
