Automatic Transmission
Automatic Transmission

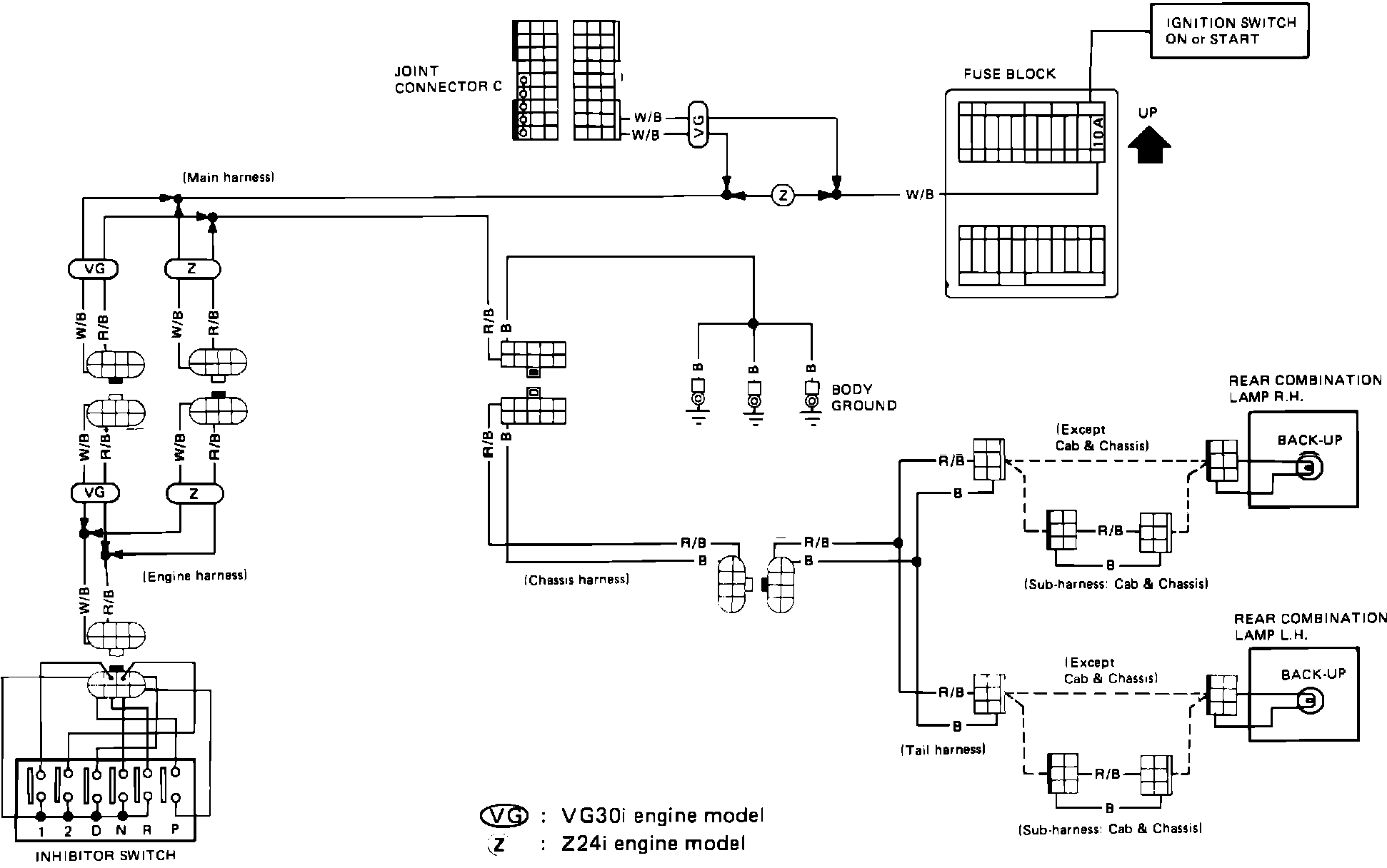

Fig. 9 Back-Up Lamp Wiring Circuit. Automatic Transmission:
