Home >> Nissan-Datsun >> 1986 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Instrument Panel Circuit Board Wiring >> W/SUB-Fuel Gauge

W/SUB-Fuel Gauge

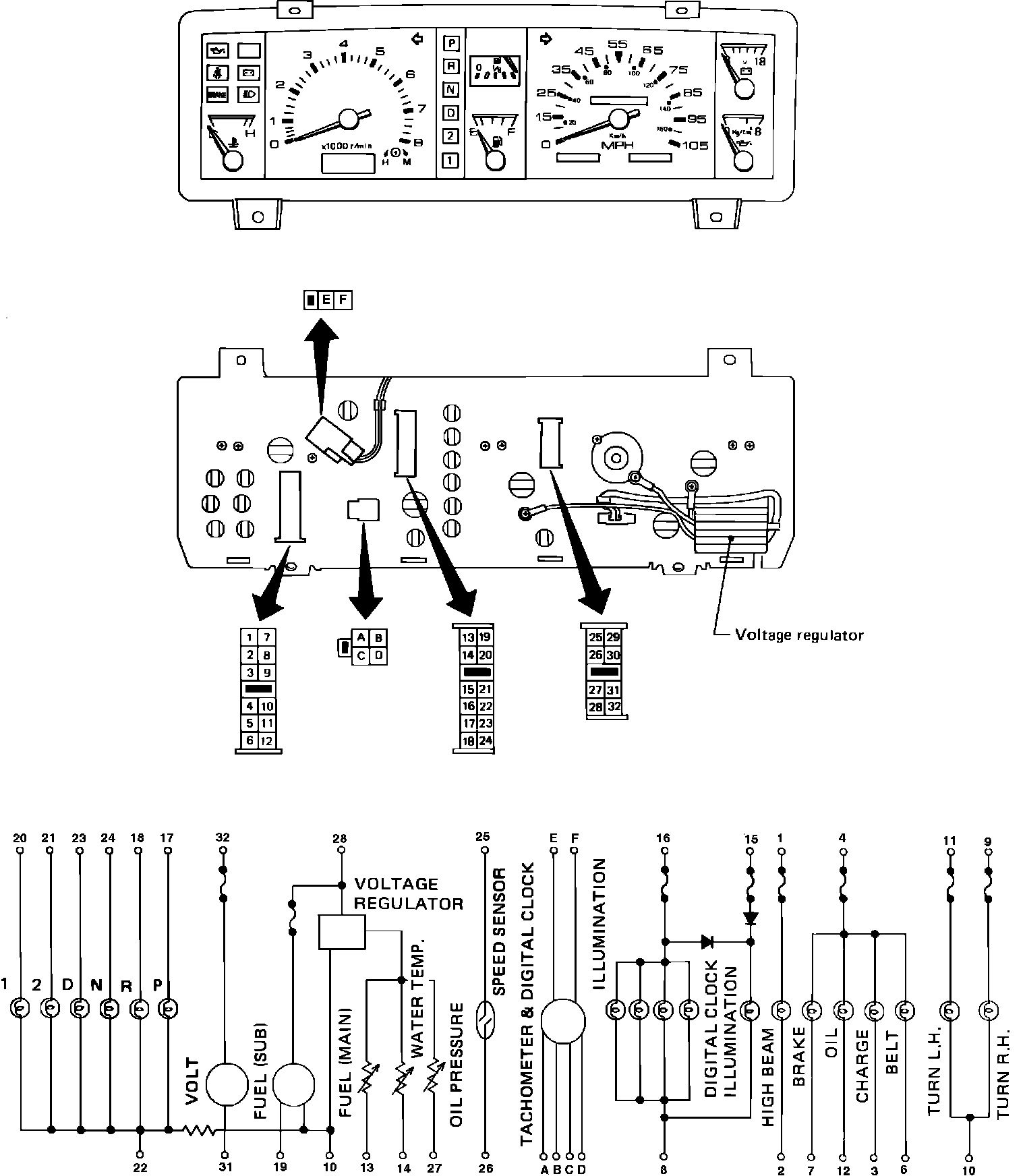

Fig. 6 Instrument Panel Printed Circuit. w/Sub-Fuel Gauge:
