Home >> Nissan-Datsun >> 1986 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC (VG30i) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Gauges & Meter Wiring >> Less SUB-Fuel Gauge

Less SUB-Fuel Gauge

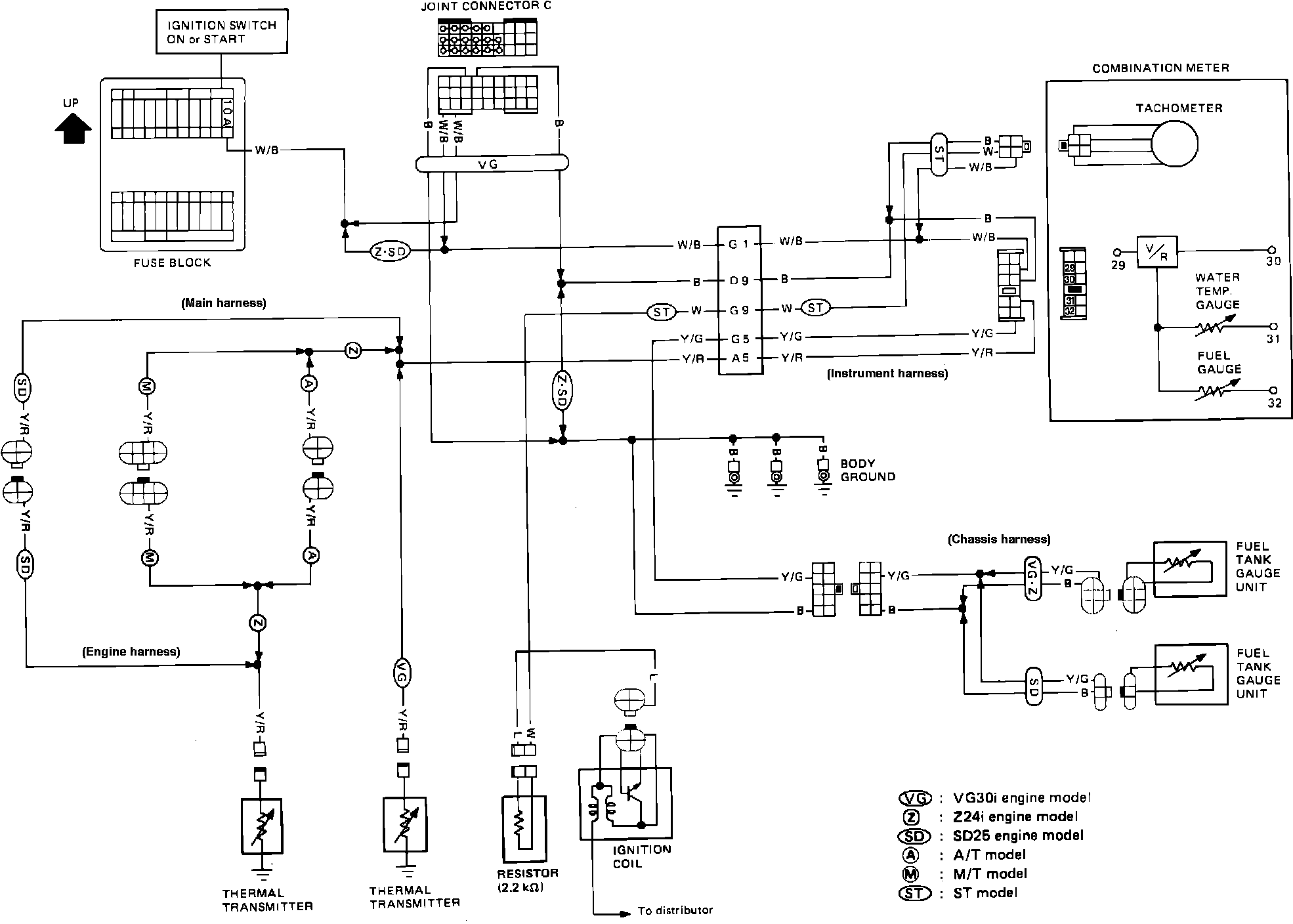

Fig. 20 Gauges Wiring Circuit. Less Sub-Fuel Gauge:
