Power Brake Assist: Service and Repair

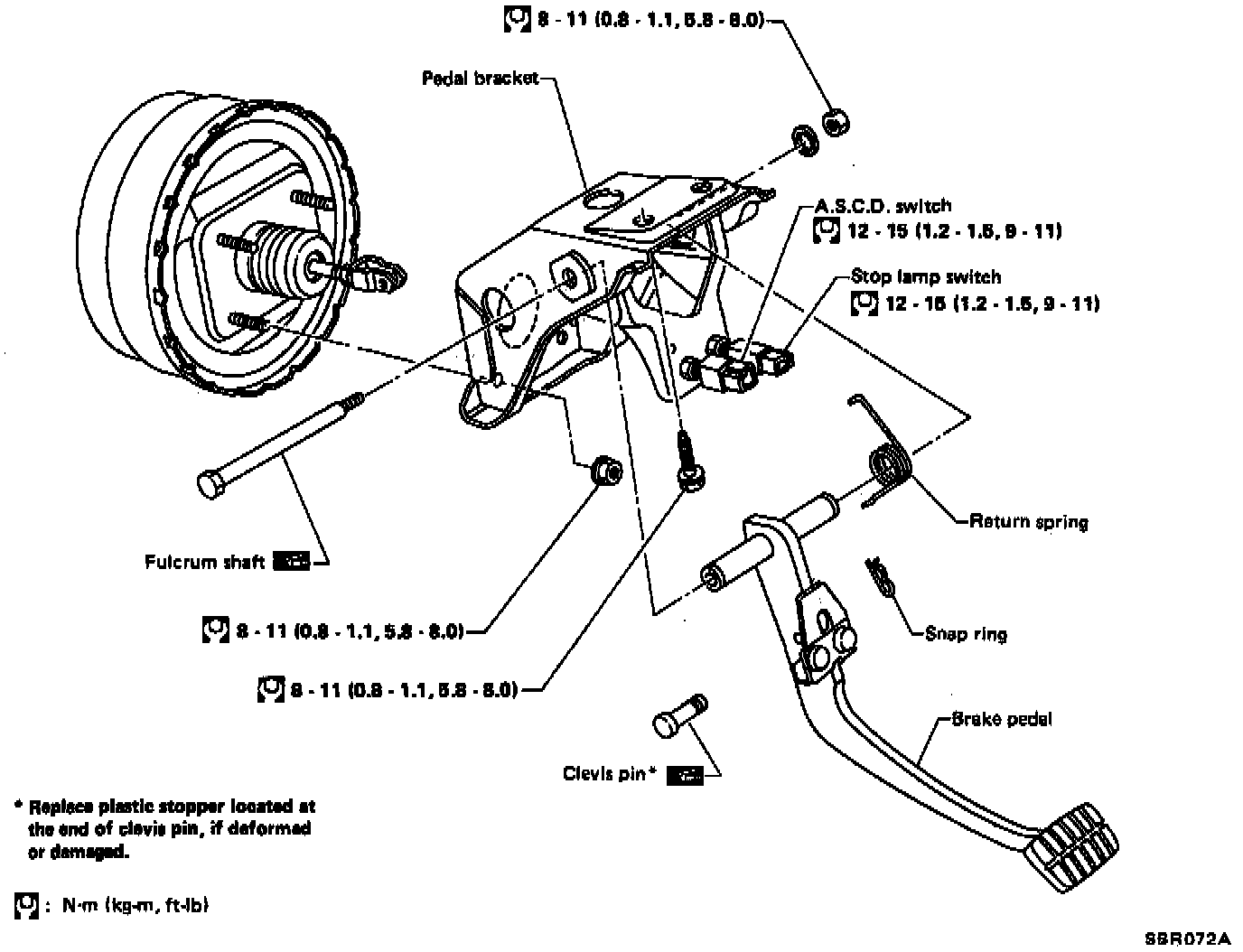

Brake Booster, Pedal And Bracket:

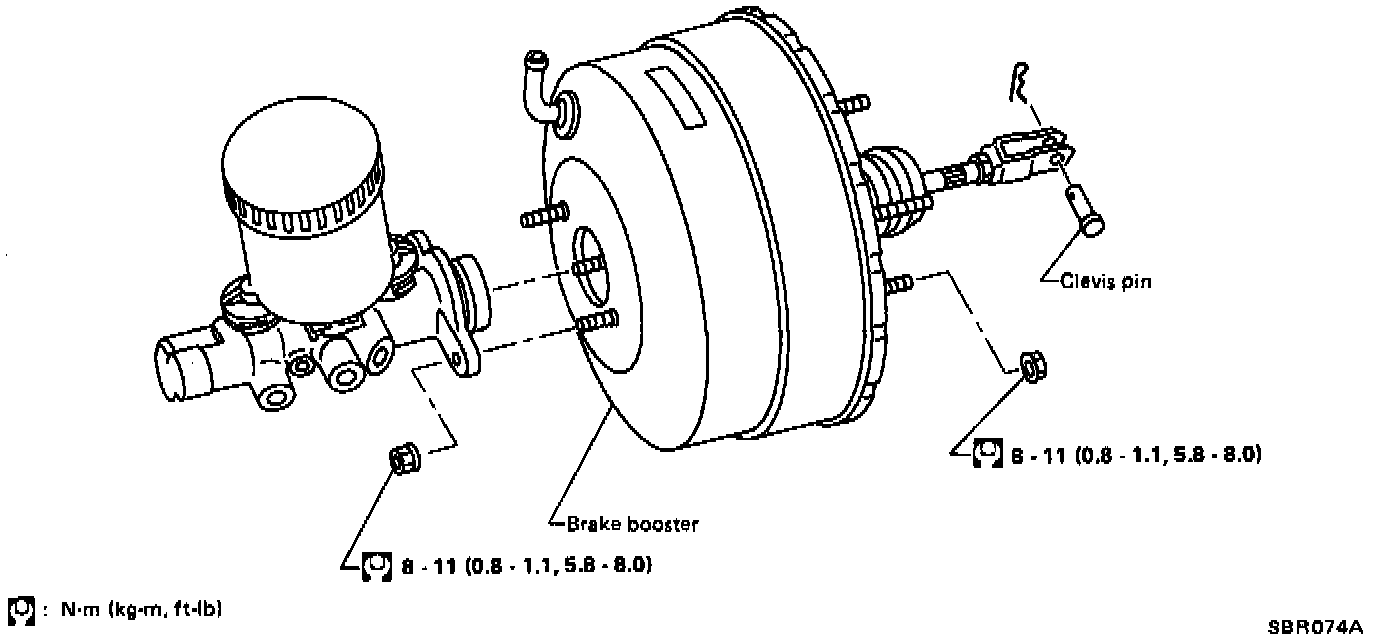

Brake Booster And Master Cylinder:

REMOVAL
1. Remove brake lines at master cylinder.
2. Remove master cylinder.
3. Disconnect brake booster at brake pedal.
4. Disconnect check valve hose at power booster.
5. Disconnect vacuum hose(s), if equipped.
6. Remove booster attaching bolts and/or nuts and the booster.

INSTALLATION
Brake booster output rod length is not adjustable for this year model. Reverse REMOVAL procedures to install.
