Brake Shoe: Testing and Inspection

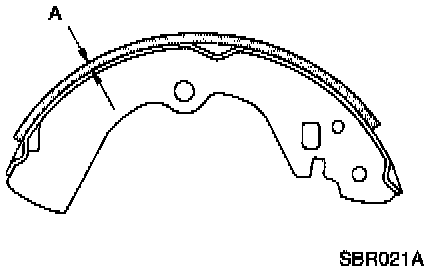

Measuring Brake Lining:

INSPECTION - LINING
Measure the thickness of brake shoe lining. Use specifications below for reference.

STANDARD LINING THICKNESS:
LT26B: 5.5 mm (0.217 in)

LT30A: 6.1 mm (0.240 in)

DS25B: 3.9 mm (0.154 in)

DS22: 4.6 mm (0.181 in)

DS25C & DS25D: 6.0 mm (0.24 in)



LINING WEAR LIMIT 1.5 mm (0.059 in)
