Dash Board

Dash Board

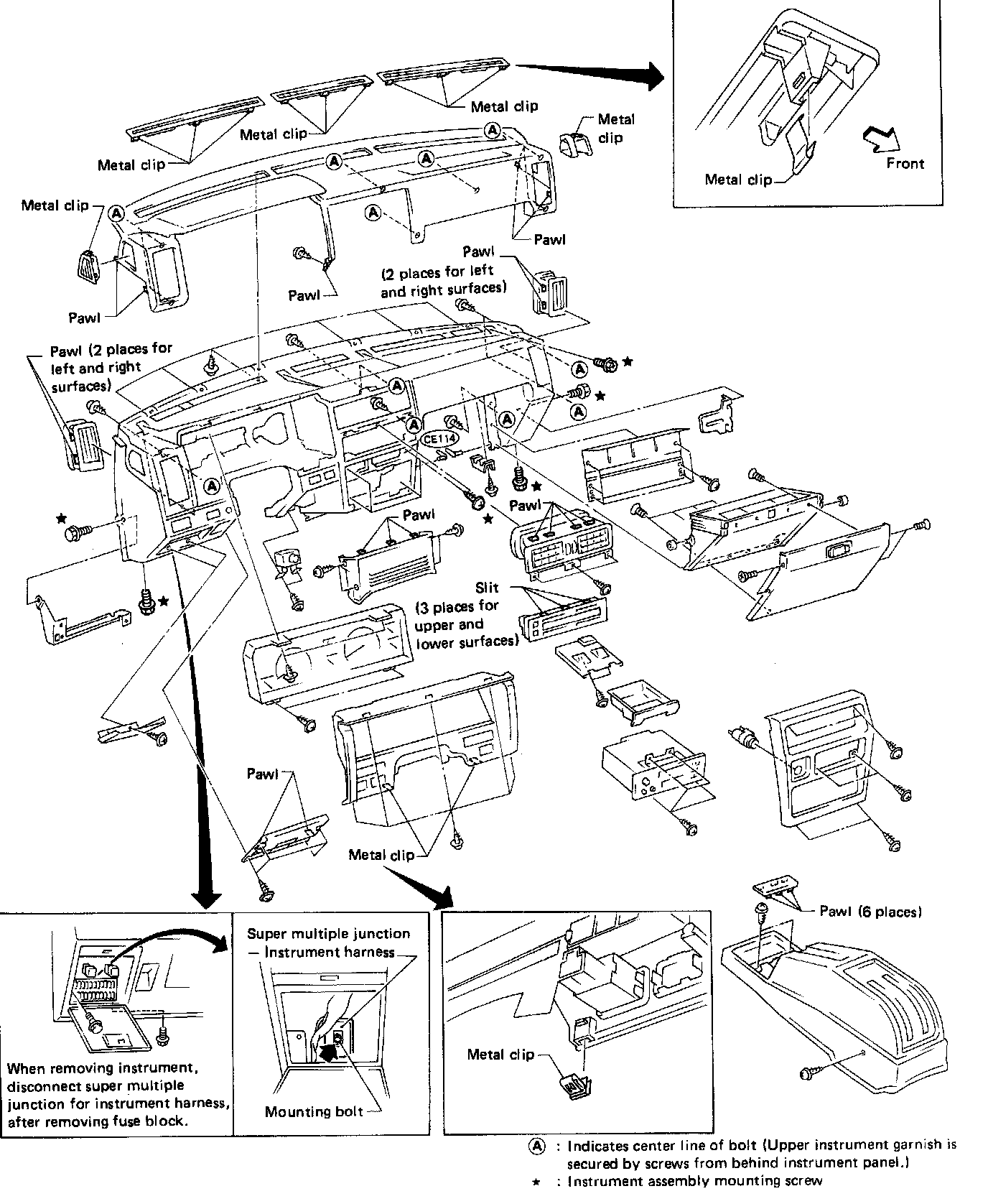

These parts are made of plastic, so do not use excessive force and be careful not to damage it. When removing instrument assembly, remove front pillar garnish. When removing clip or fastener, refer to CLIP & FASTENER.
Precautions

1. When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent scratches.
2. Handle trim, molding, instruments, grille, etc. carefully during removing or installation. Be careful not to soil or damage them.
3. Apply sealing compound where necessary while installing parts.
4. When applying sealing compound, be careful that the sealing compound does not protrude from parts. When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust prevention measures.
5. Clips and fasteners in BF section correspond to the following numbers and symbols. Replace any clips and/or fasteners which are damaged during removal or installation.

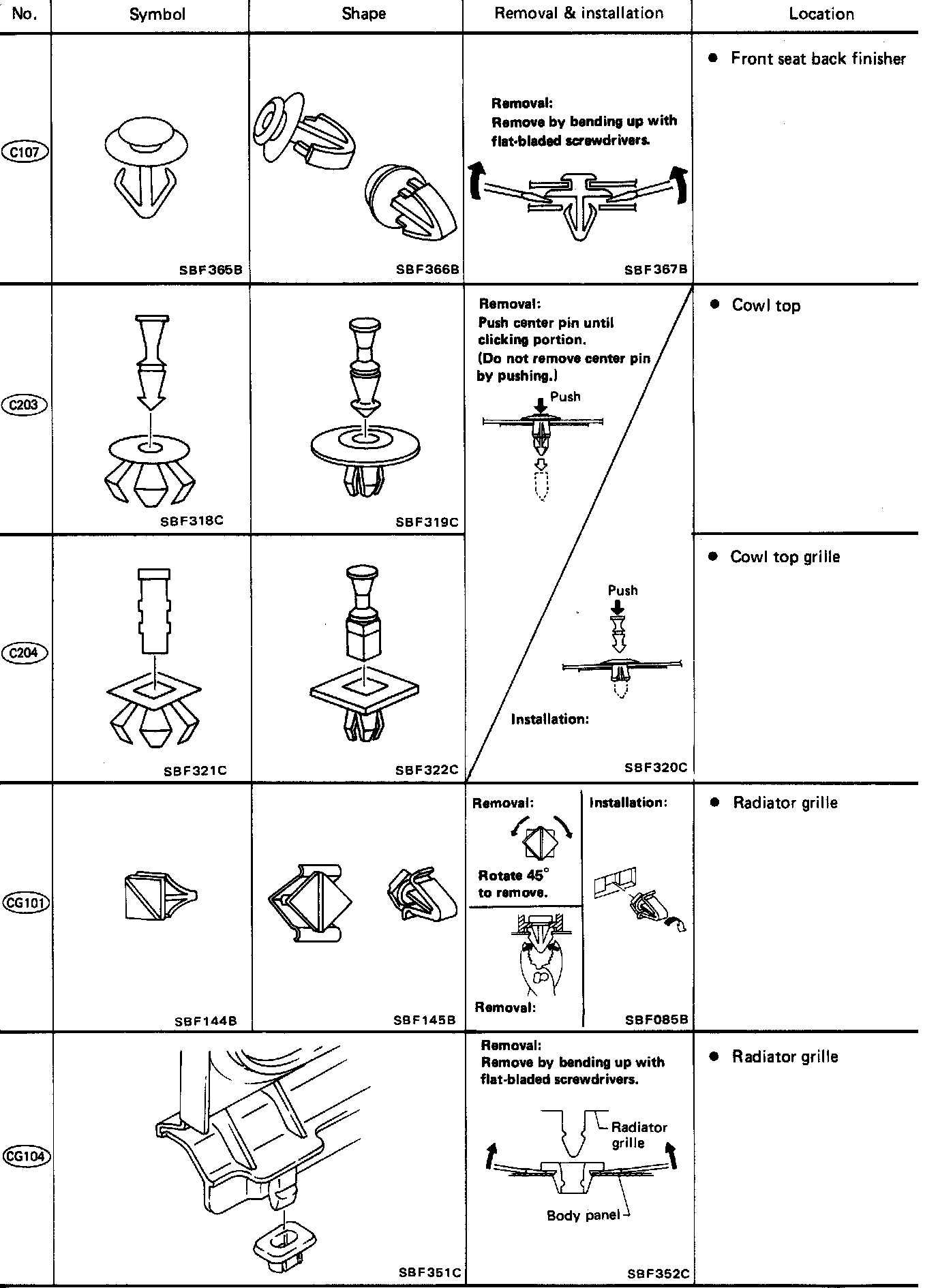

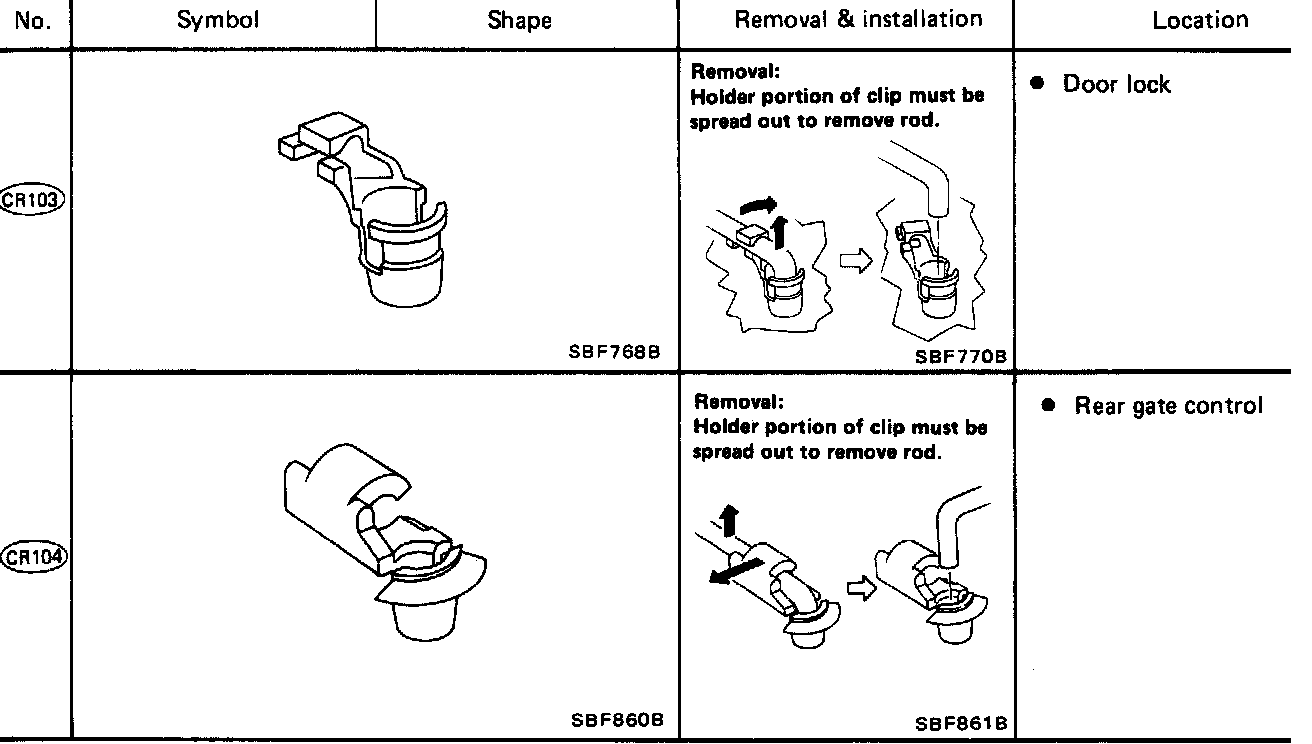

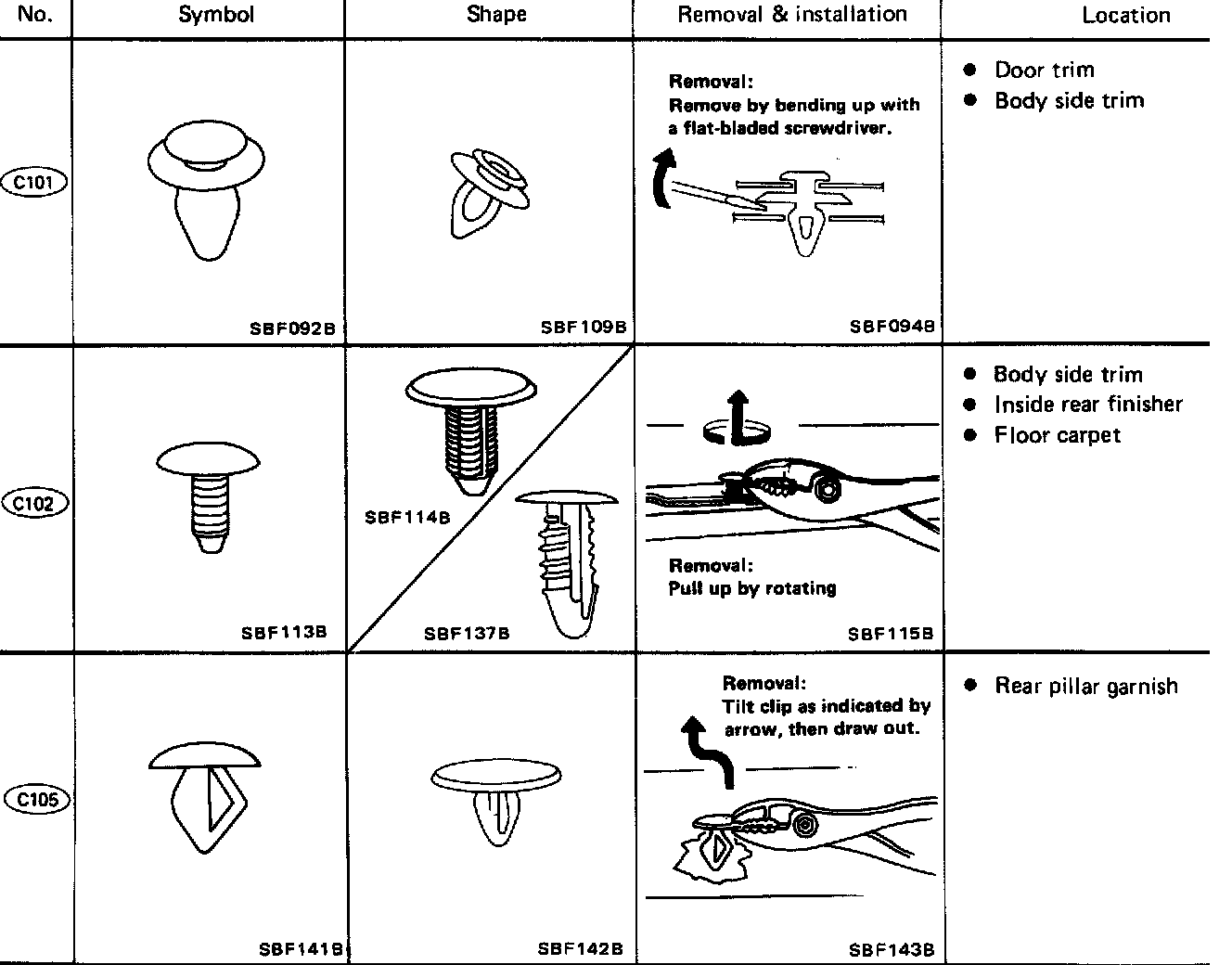

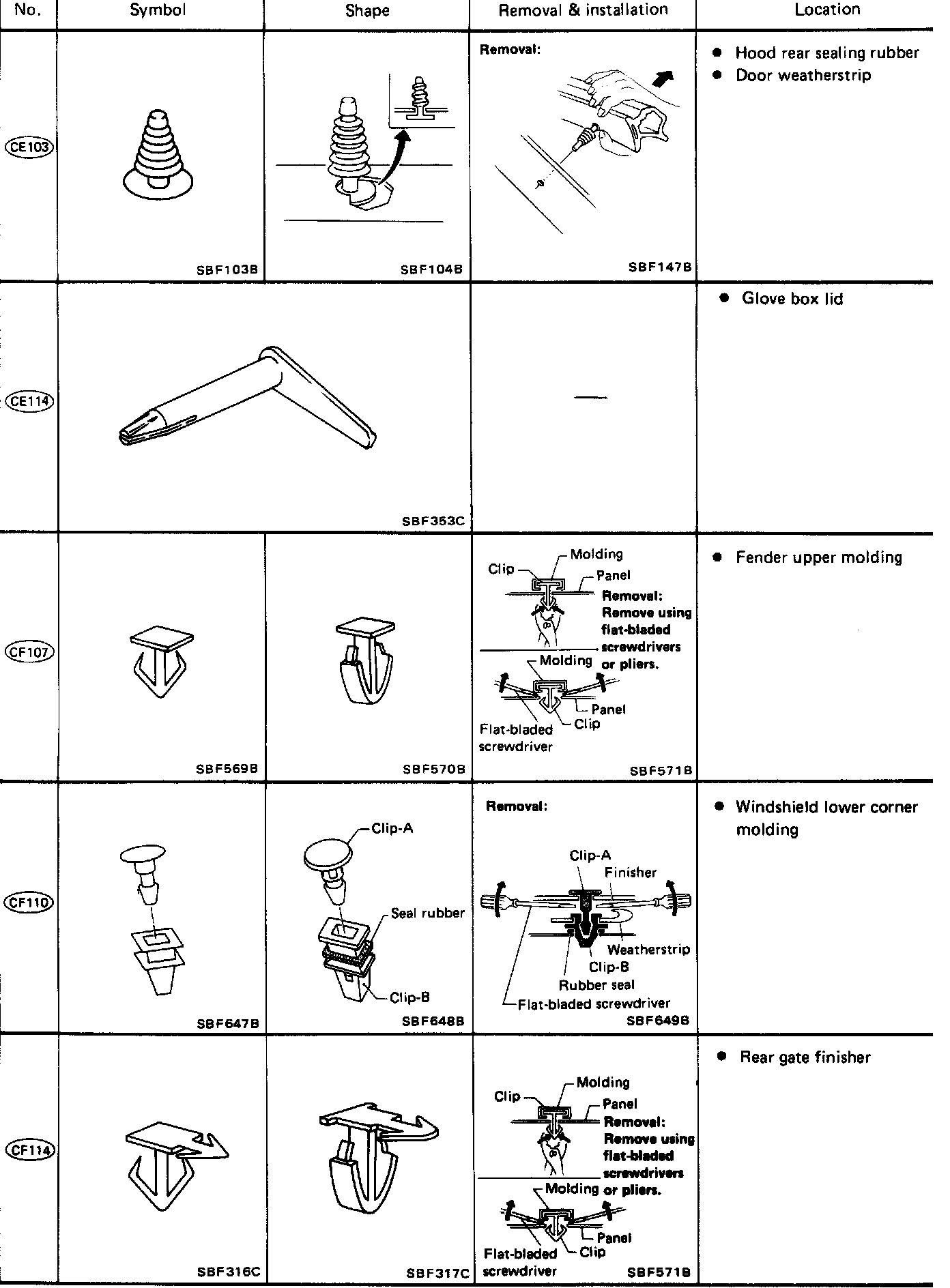

CLIPS AND FASTENERS
