DTC 42

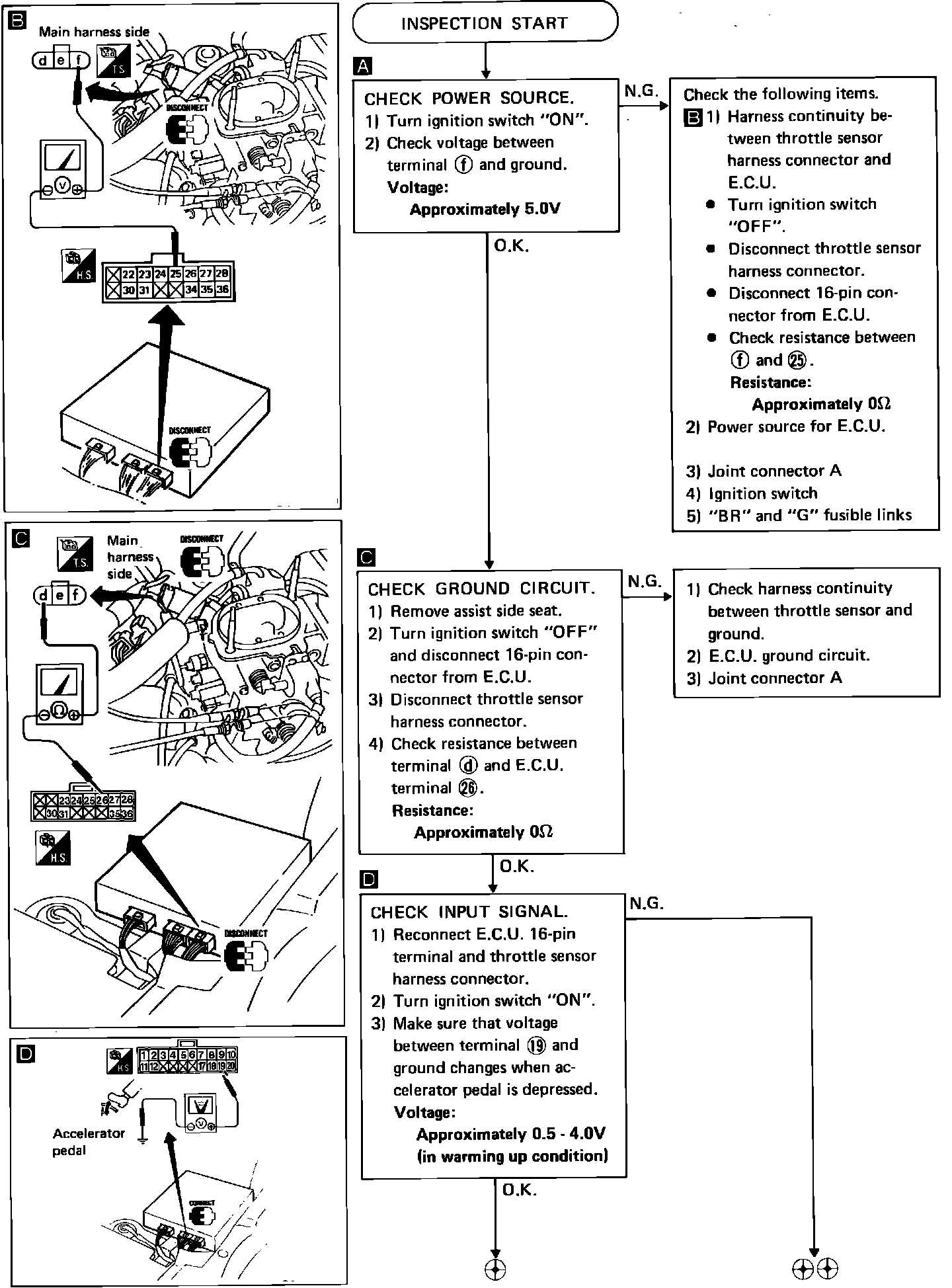

Fig. 227a Throttle sensor diagnosis chart. (Code 42):

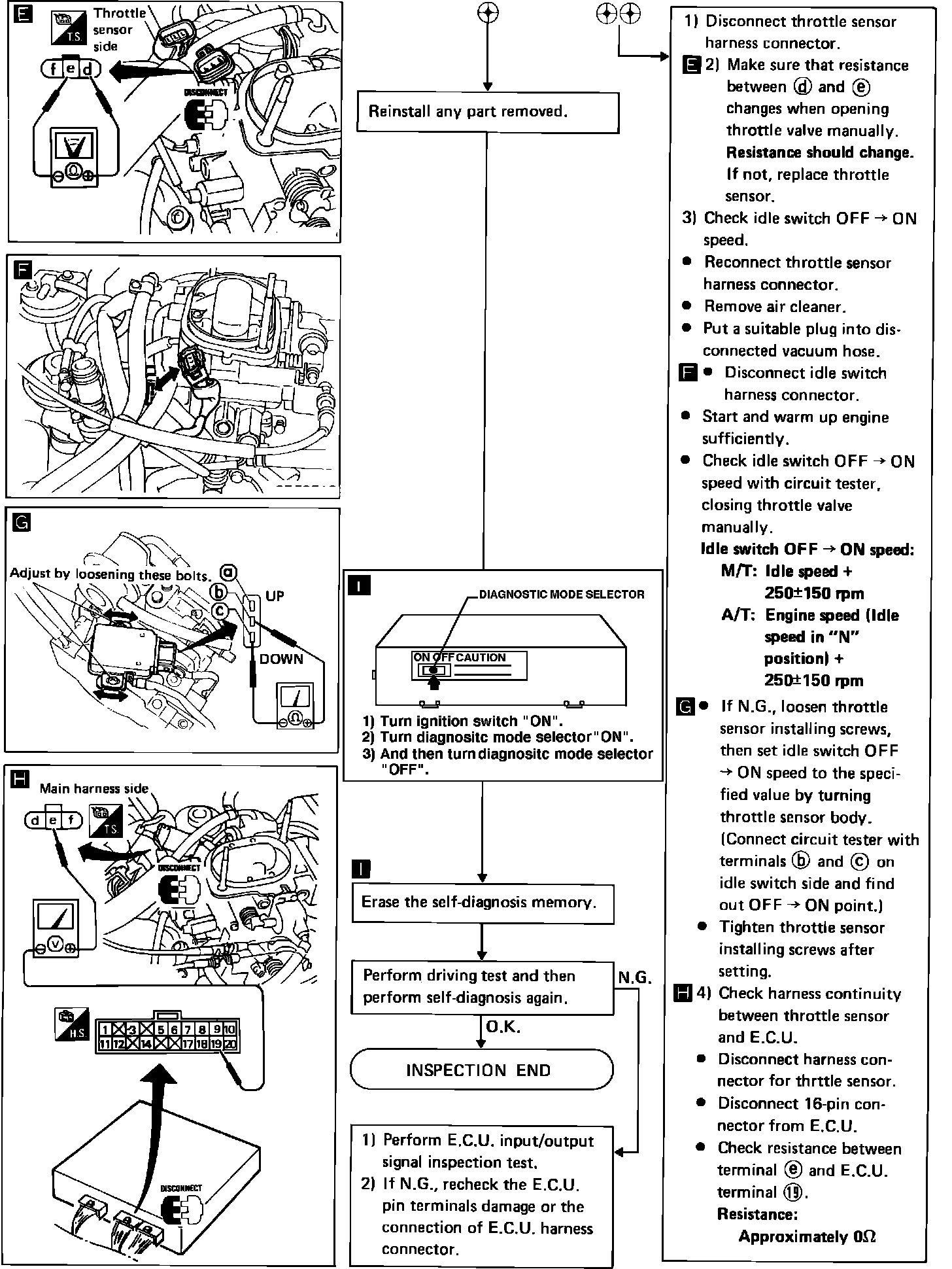

Fig. 227b Throttle sensor diagnosis chart. (Code 42):
