Parallel Links & Radius Rod: Installation

To install, reverse the removal procedure. Final tightening of the pivot bolts should be performed after vehicle is lowered to the floor. Bleed brake system and check wheel alignment.

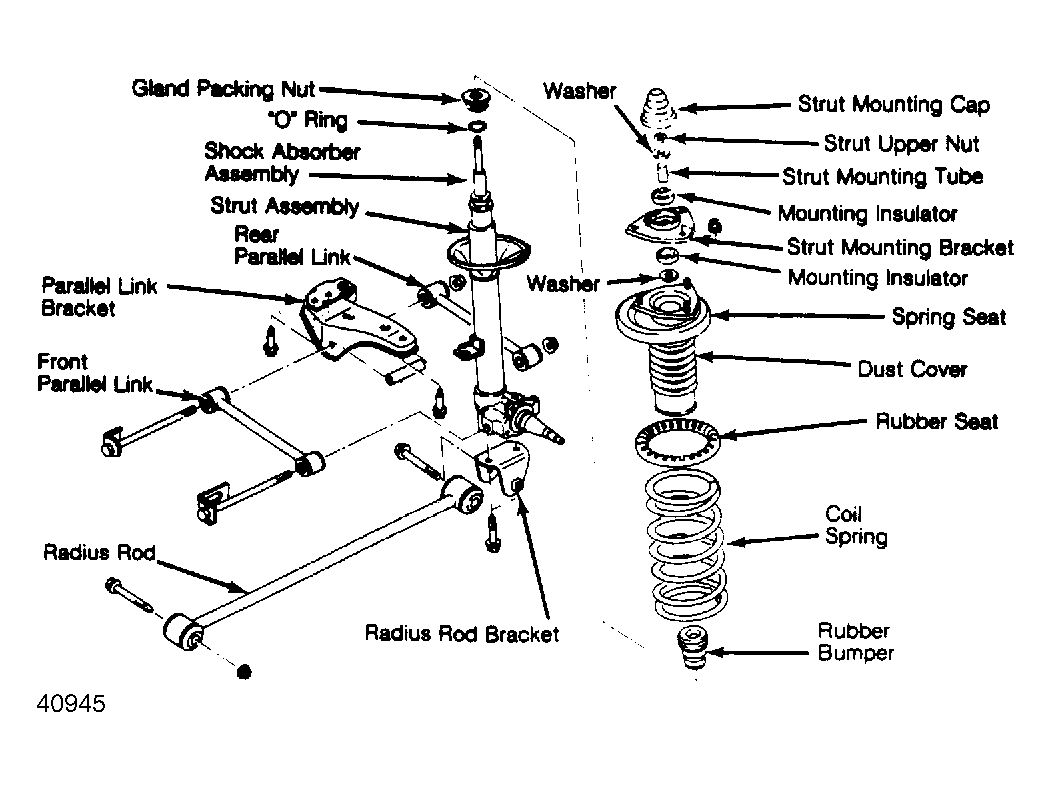

Fig 1: Exploded View of Rear Suspension
G40945
