Wiring Diagram & Schematic

WARNING: This page is about a different car, the 1985 Nissan Maxima and 1985 Nissan 200SX. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram and schematic, see Fig 1 -Fig 2 .

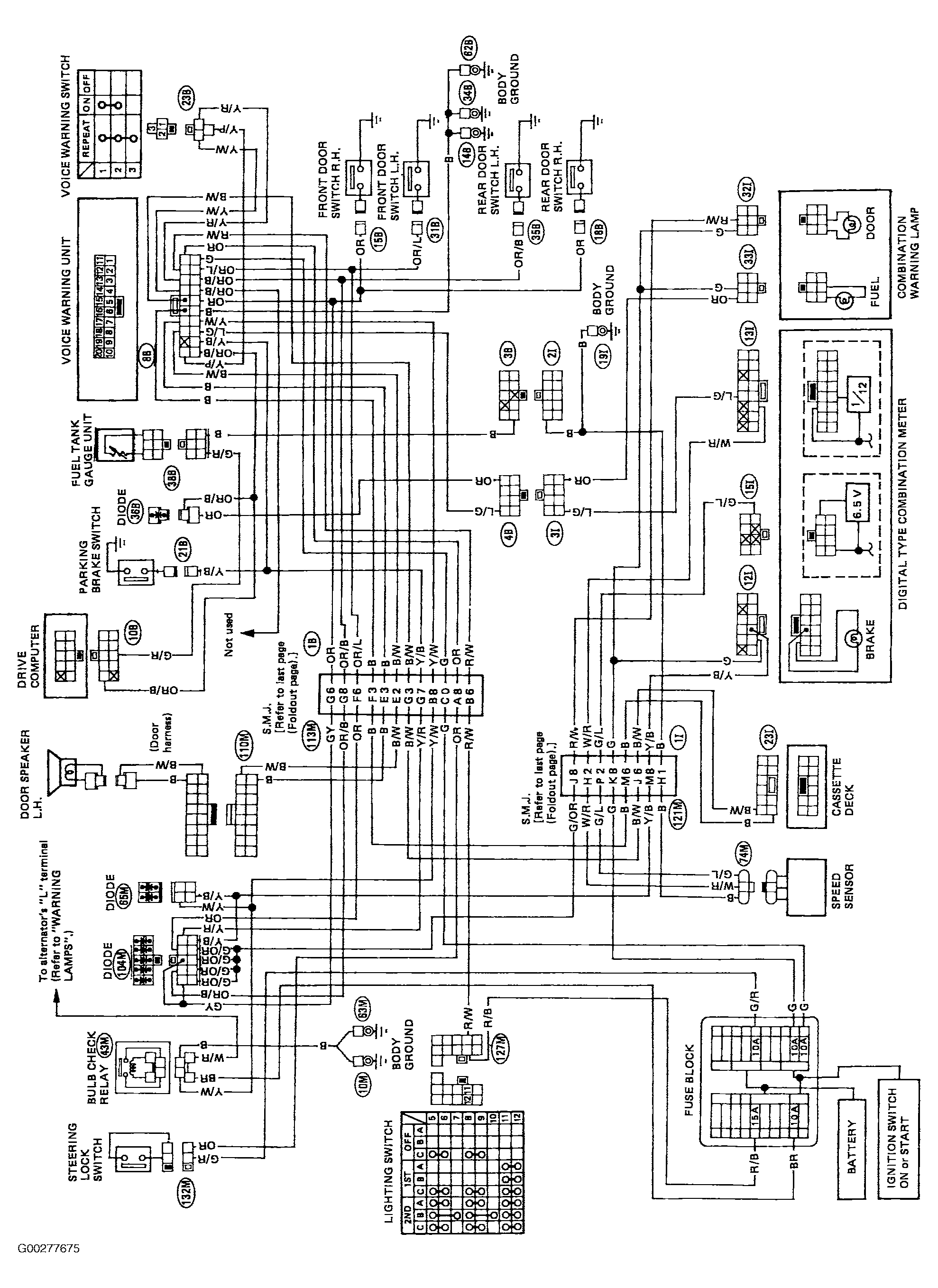

Fig 1: Wiring Diagram For Voice Warning System

Courtesy of NISSAN MOTOR CO., U.S.A.

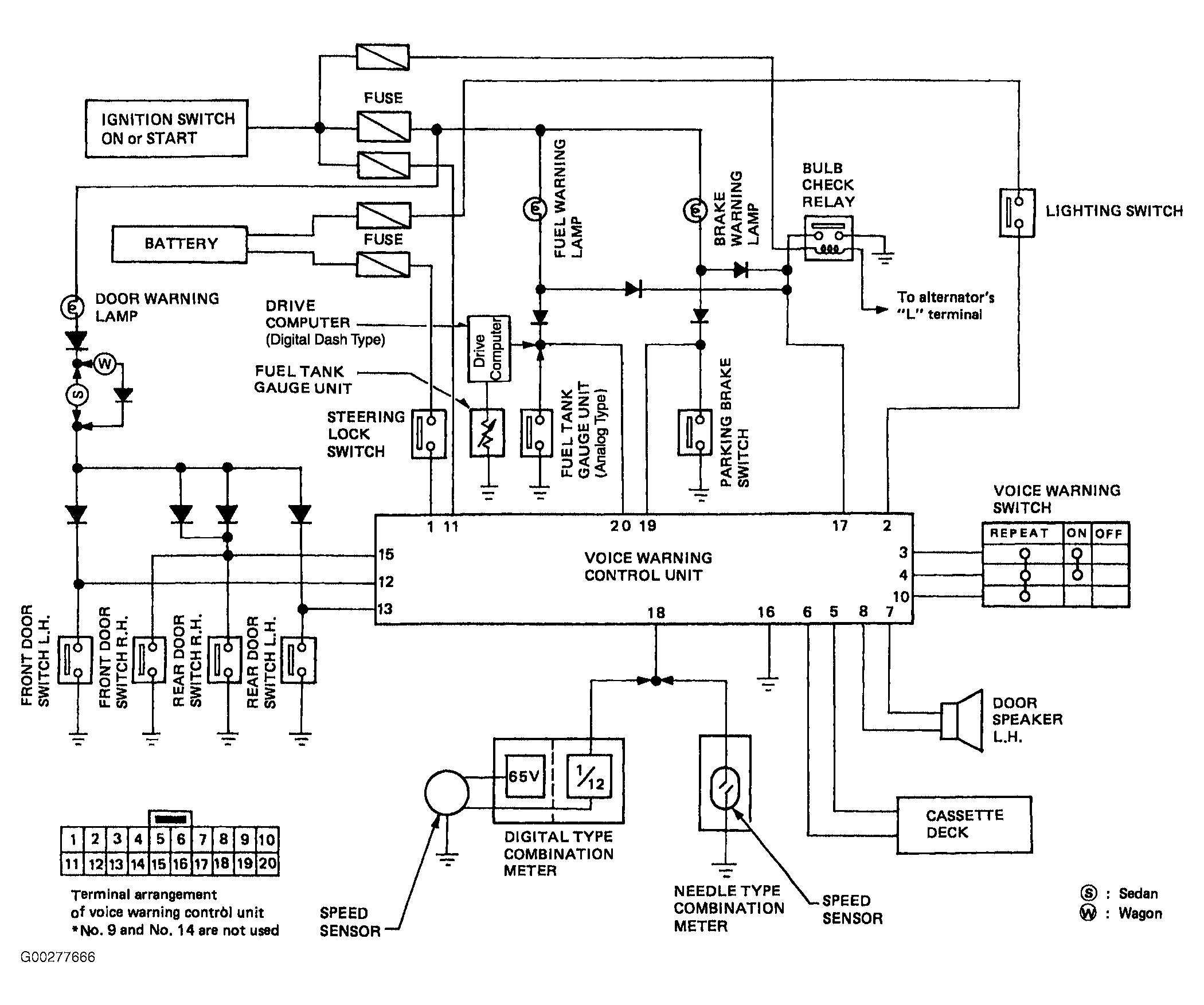

Fig 2: Schematic For Voice Warning System

Courtesy of NISSAN MOTOR CO., U.S.A.
