Signal Check
WARNING: This page is about a different car, the 1985 Nissan Maxima and 1985 Nissan 200SX. However, it is still accessible from the selected car via links, so may be relevant.

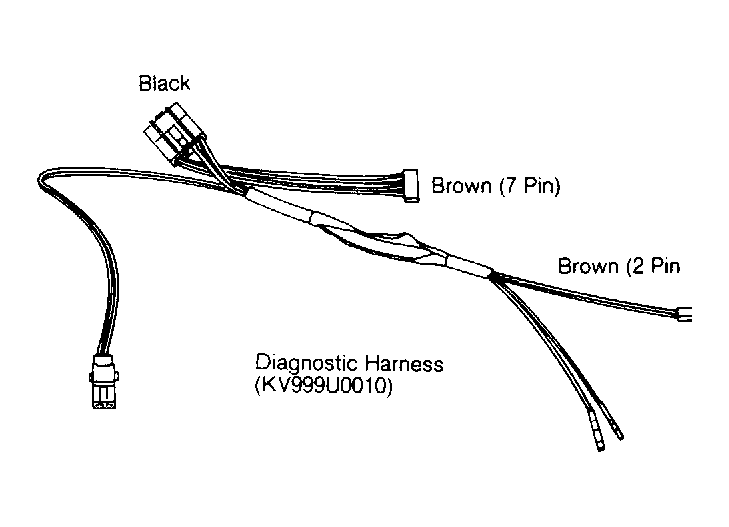

- Turn ignition switch to "OFF" position. Remove instrument cluster. Disconnect only the control unit harness connector. Leave instrument cluster harness connector installed. Connect Diagnostic Jumper Lead (KV999U0010). See Fig 1 .
- Turn ignition switch to "ON" position. Compare readings to DIGITAL DISPLAY TEST READINGS table. Incorrect readings indicate malfunction of display unit.
DIGITAL DISPLAY TEST READINGS
| Meter or Gauge | Reading | |
|---|---|---|
| Fuel Gauge | 7-8 Segment | |
| Odometer (Trip "A") | ||
| At 31 Sec. | .1 kilometer Up | |
| At 50 Sec. | .1 mile Up | |
| Oil Pressure Gauge | 28-43 psi (2-3 kg/cm2 ) | |
| Speedometer | 7-9 MPH (11-14 KPH) | |
| Tachometer | 1200-1800 RPM | |
| Volt Gauge | Battery Voltage | |
| Water Temp. Gauge | Mid Point | |
