Timing Belt: Installation

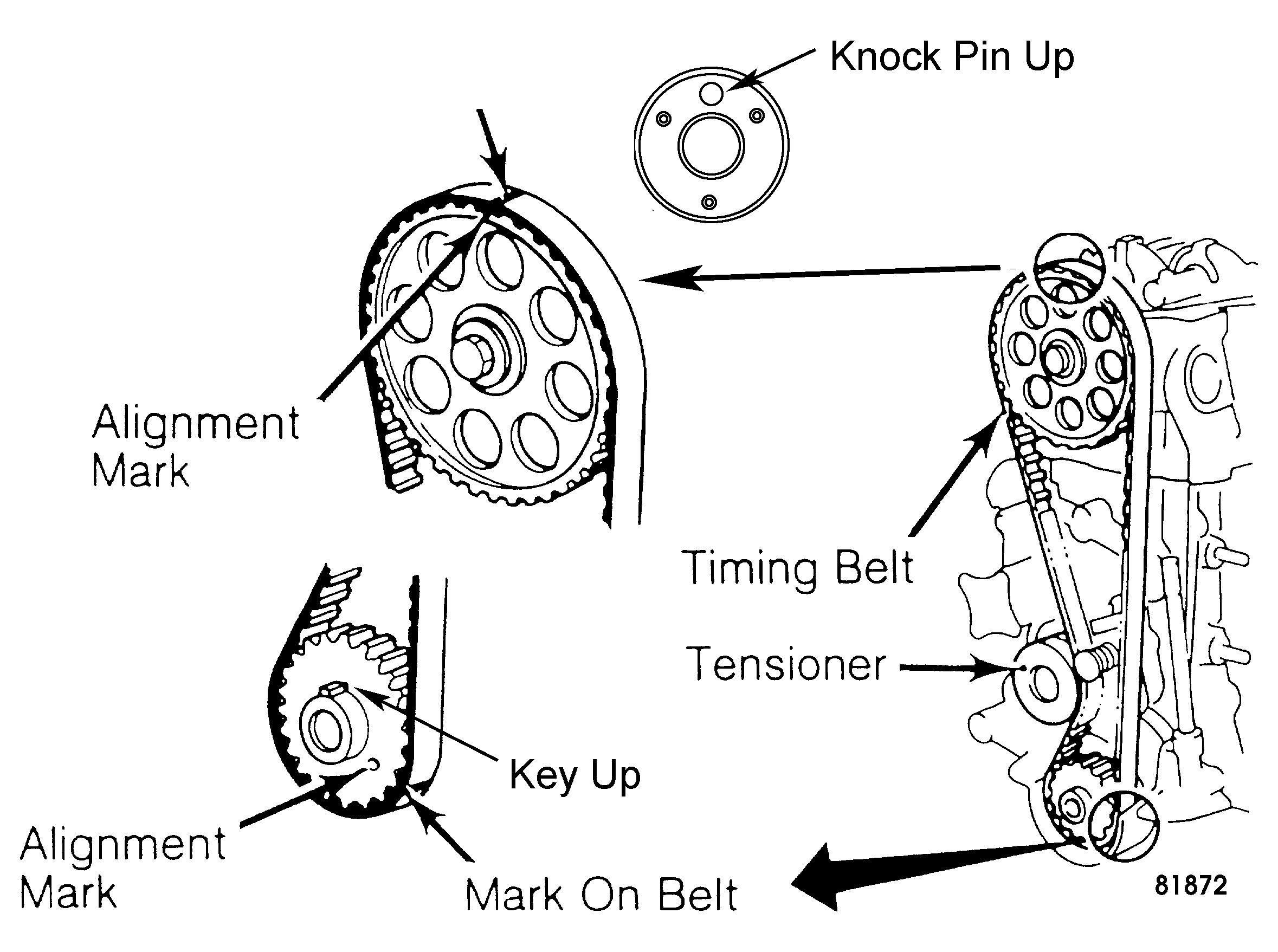

  1. DO NOT  tighten tensioner bolts to final specification before drive belt is installed. Install timing belt. Align belt mark to camshaft and crankshaft sprocket marks. See Figure .

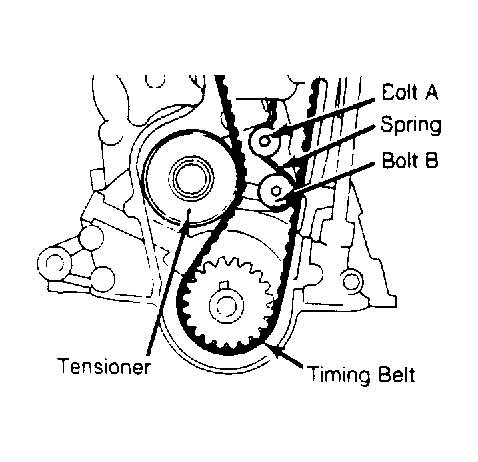

  2. Tighten belt tensioner and assemble spring. To set spring, hook one end on bolt "B" side. Hook the other end on tensioner bracket pawl. Tighten bolt "B" and then bolt "A". See Figure .
  3. Belt tension will automatically be at the specified value. Install lower front cover with gaskets and tighten mount bolts. Install plate and front pulley damper. Complete installation by reversing removal procedure.
