Rear Wheel Cylinder: Disassembly

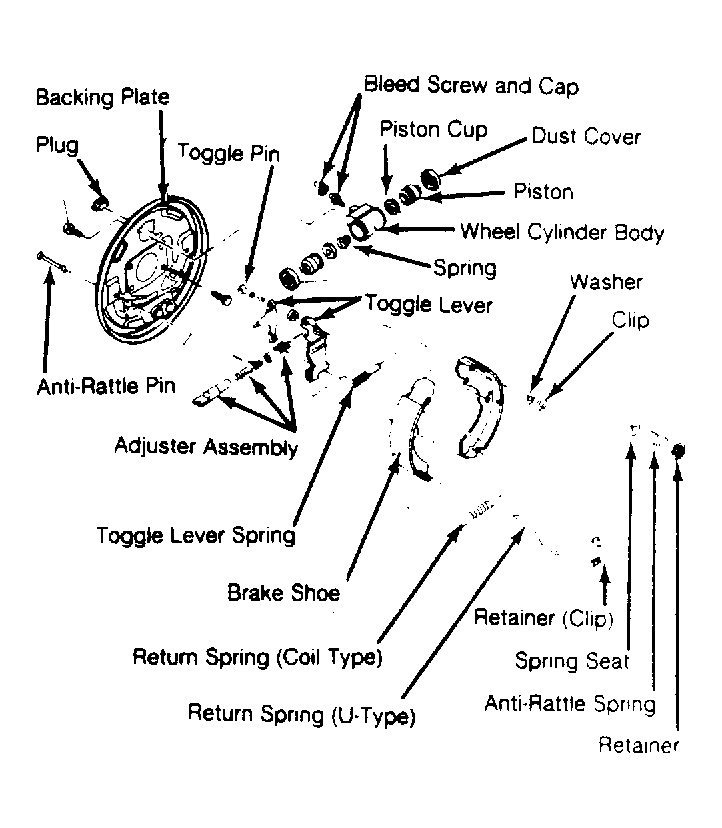

With rear brake linings removed, disconnect hydraulic line and 2 mount bolts. With wheel cylinder removed, remove dust covers, pistons, cups and spring. See Figure .
