Wiring Diagram & Schematic

For wiring diagram and schematic, see Fig 1-Fig 2 .

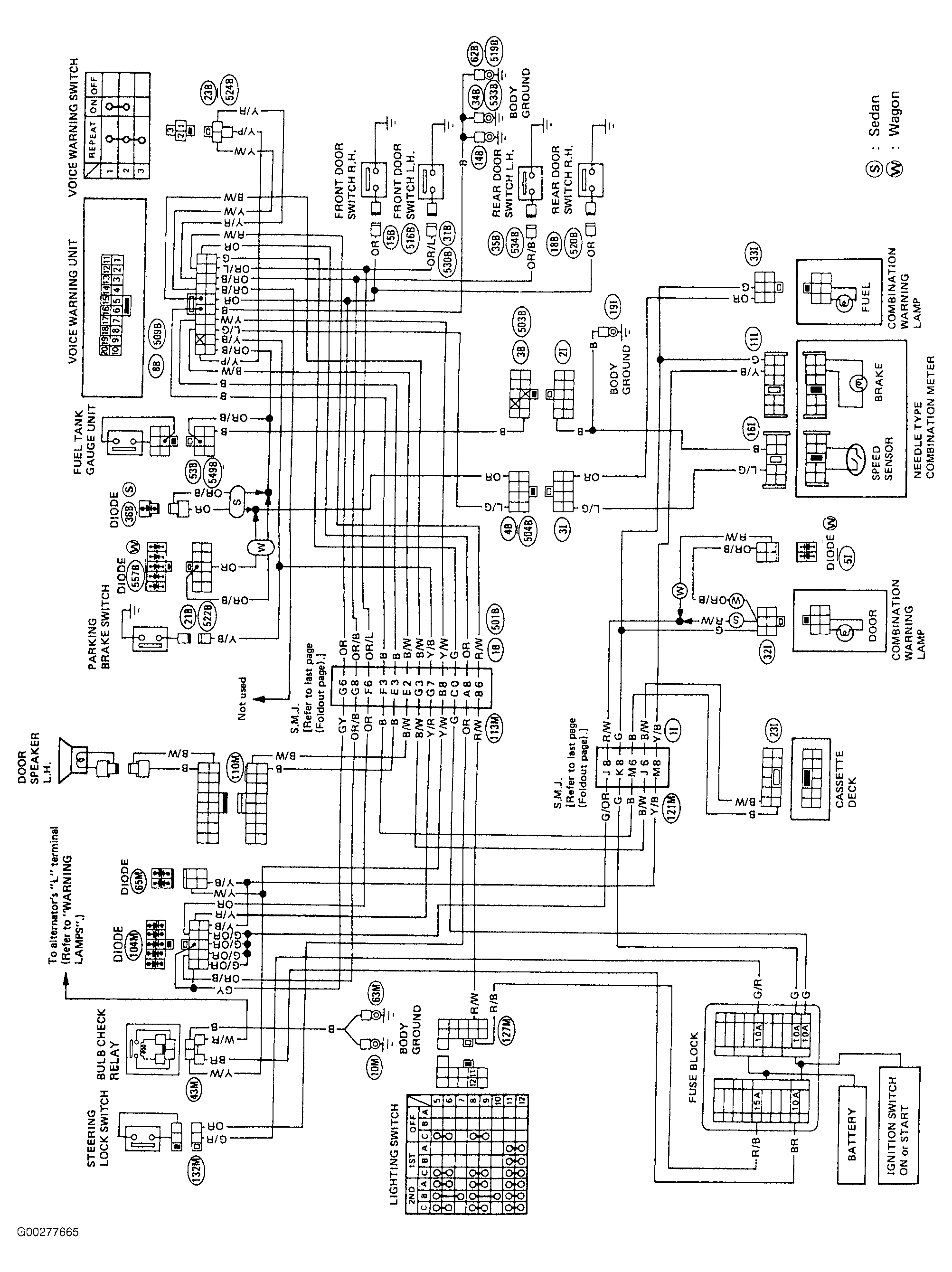

Fig 1: Wiring Diagram For Voice Warning System

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Schematic For Voice Warning System

Courtesy of NISSAN MOTOR CO., U.S.A.
