Voice Warning System Unit Terminal Checks

For voice warning system unit terminal checks, see Fig 1-Fig 2 .

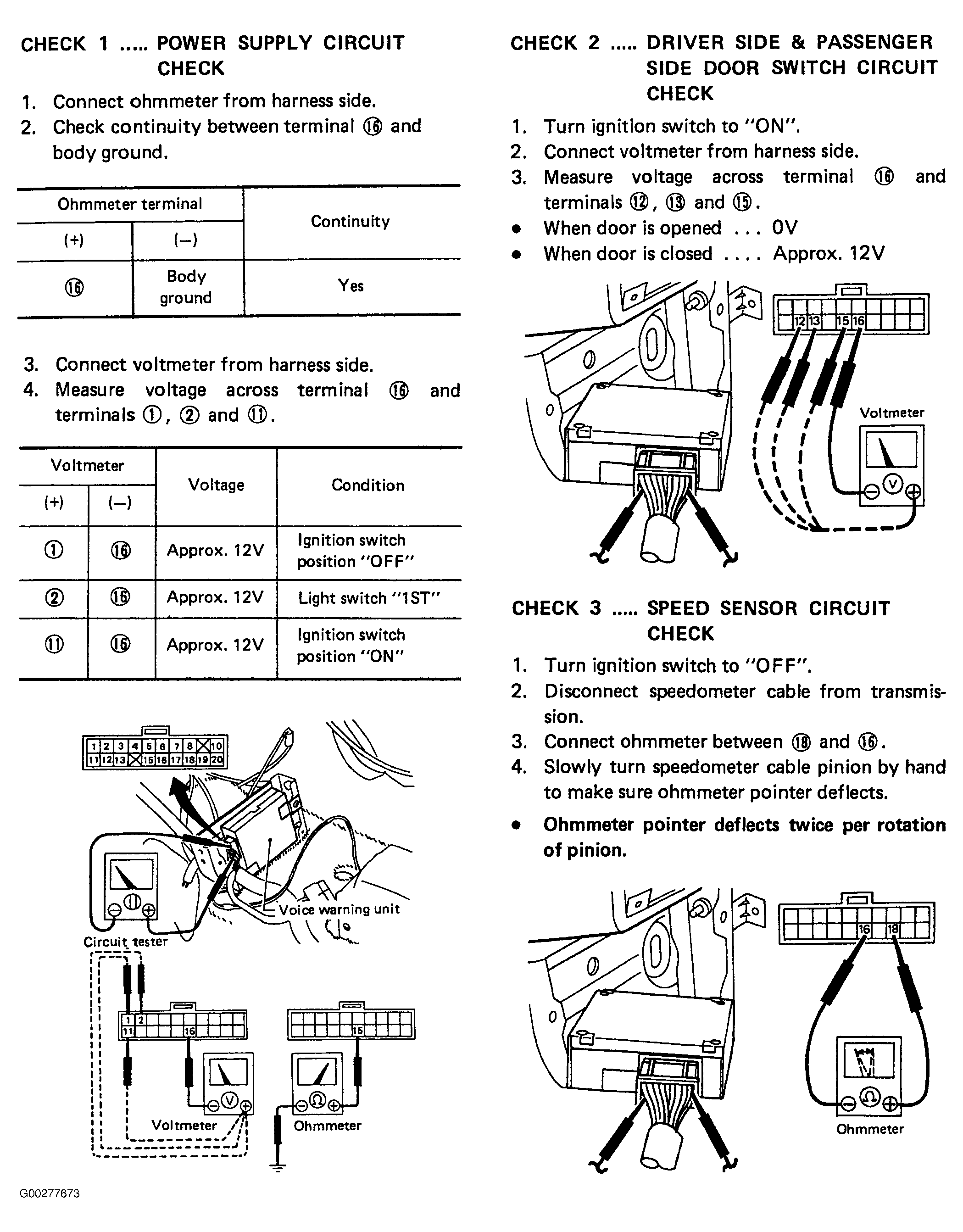

Fig 1: Voice Warning System Unit Terminal Checks (1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.

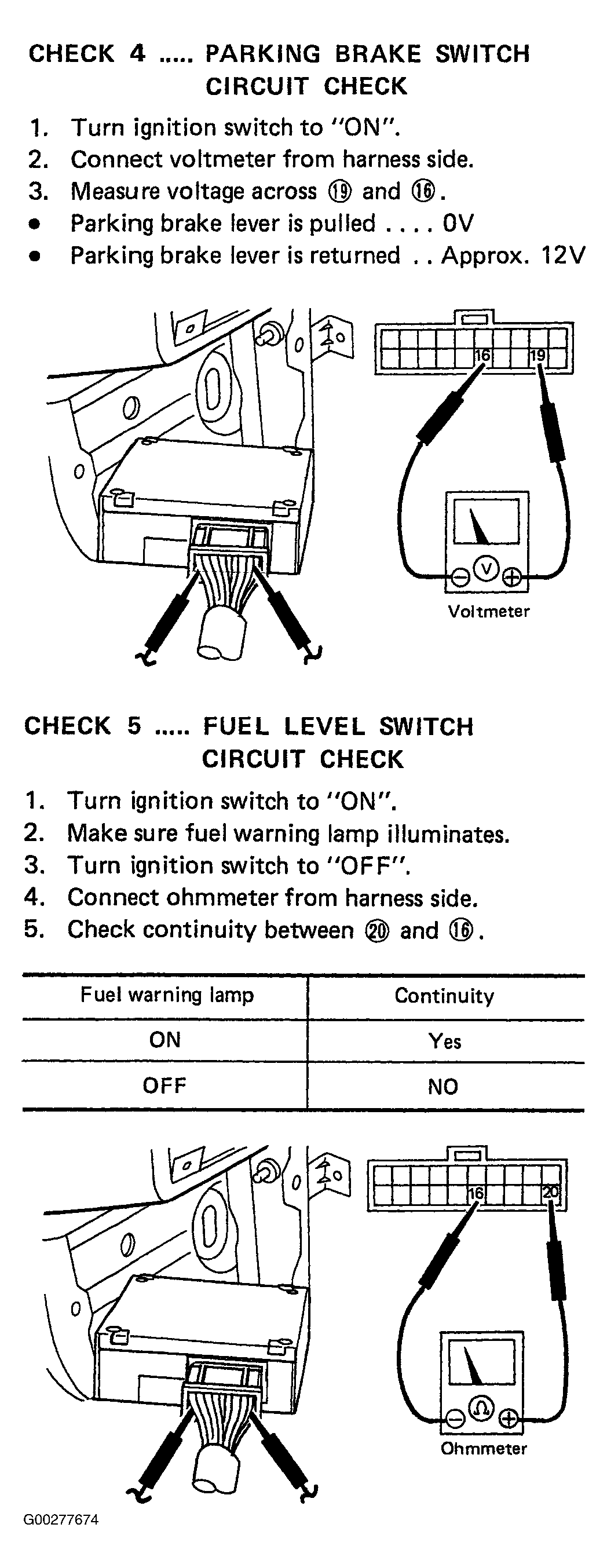

Fig 2: Voice Warning System Unit Terminal Checks (4-5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Wiring Diagram For Voice Warning System

Courtesy of NISSAN MOTOR CO., U.S.A.
