Trouble Shooting

For trouble shooting procedures, see TROUBLE SHOOTING INSPECTION  table.

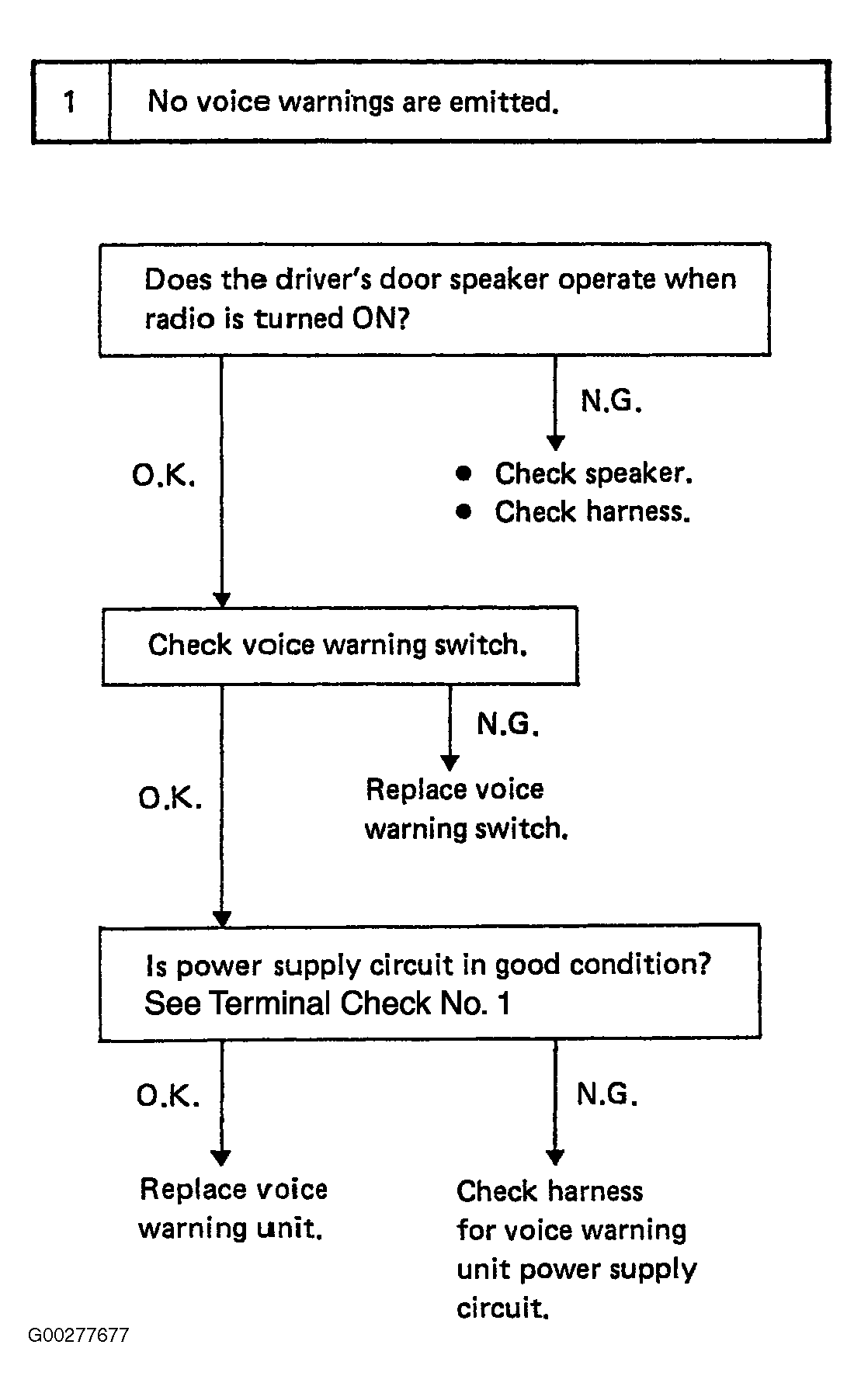

Fig 1: No Voice Warnings Are Emitted

Courtesy of NISSAN MOTOR CO., U.S.A.

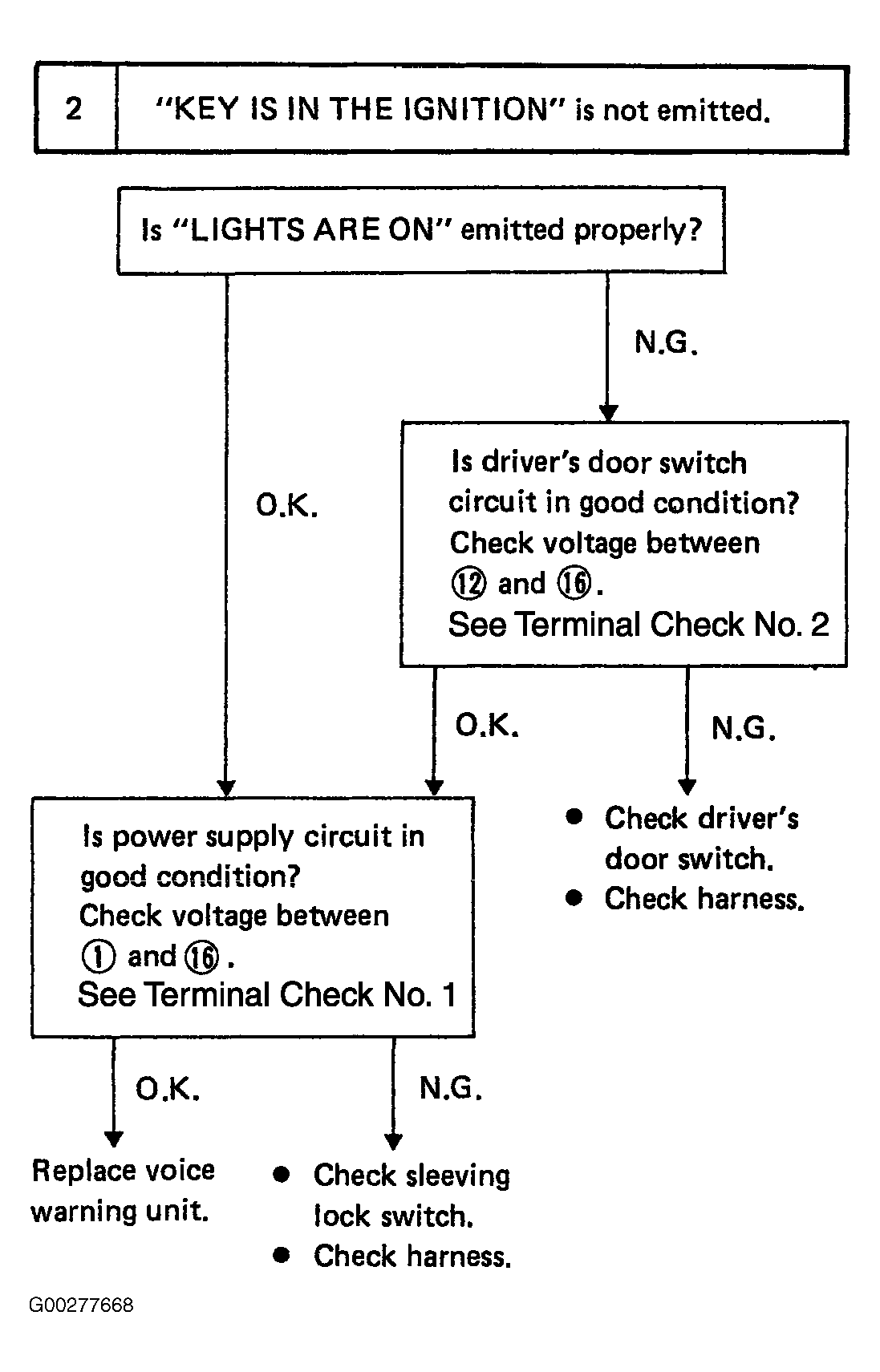

Fig 2: "Key Is In The Ignition" Is Not Emitted

Courtesy of NISSAN MOTOR CO., U.S.A.

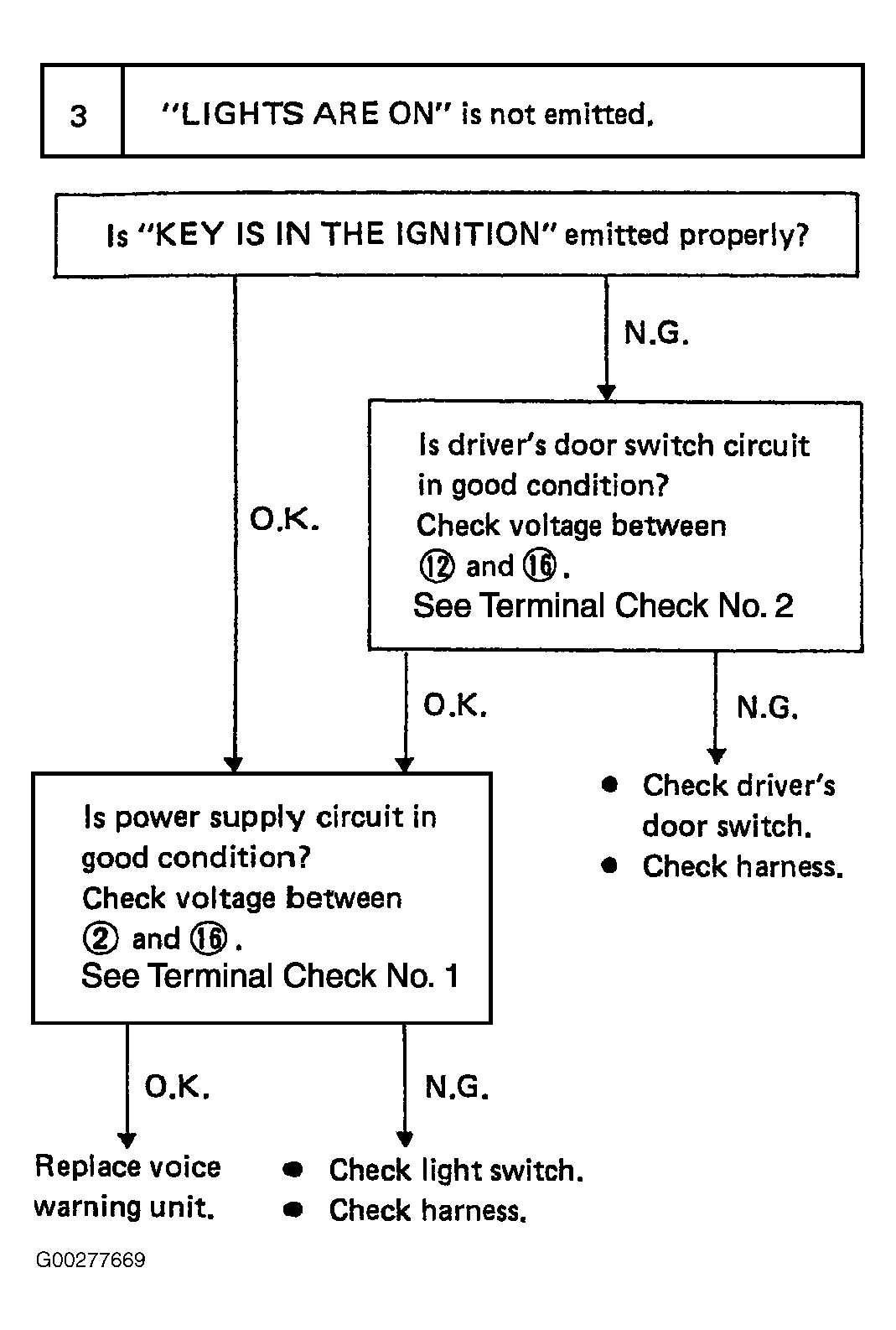

Fig 3: "Lights Are On" Is Not Emitted

Courtesy of NISSAN MOTOR CO., U.S.A.

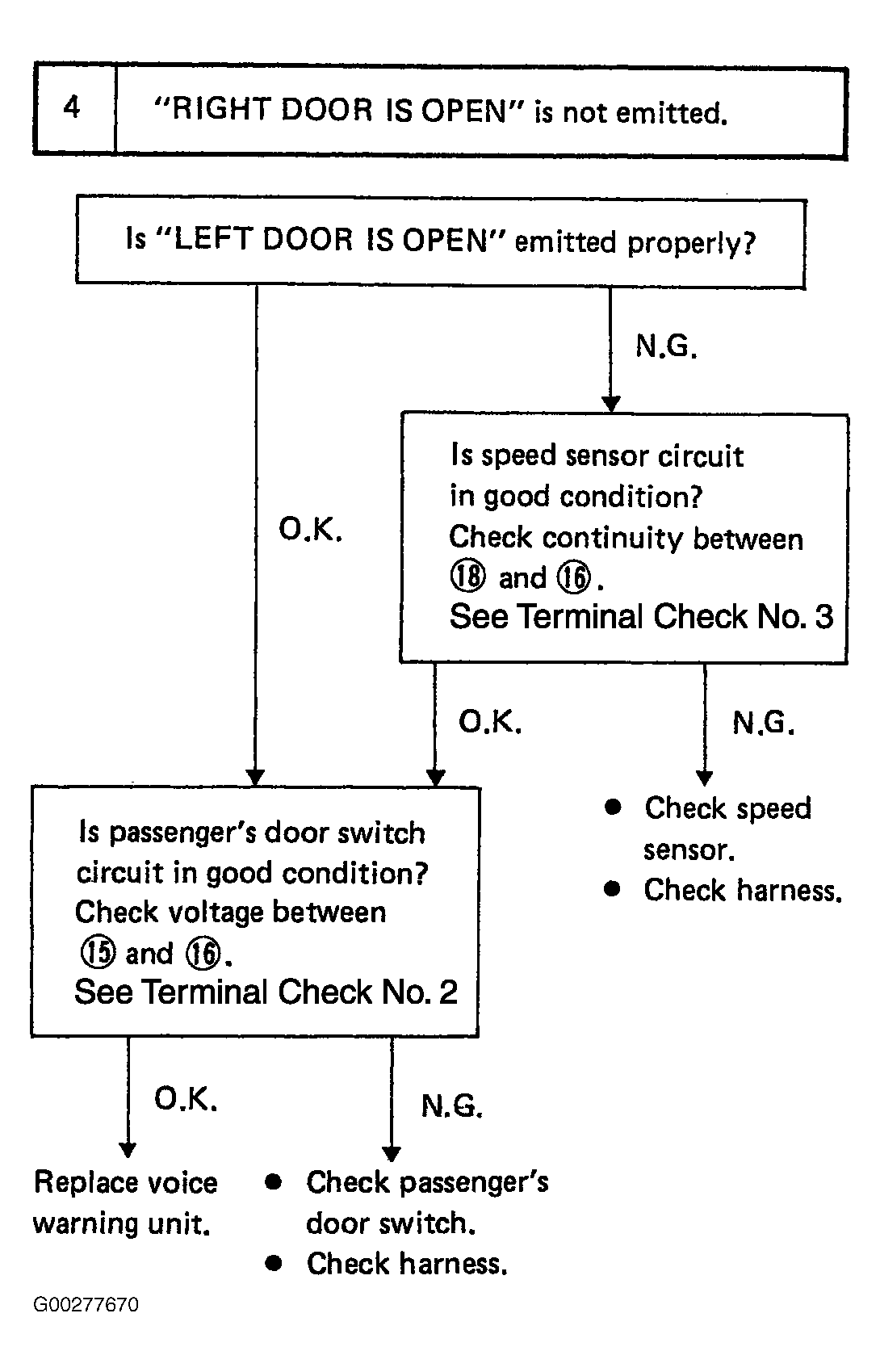

Fig 4: "Right Door Is Open" Is Not Emitted

Courtesy of NISSAN MOTOR CO., U.S.A.

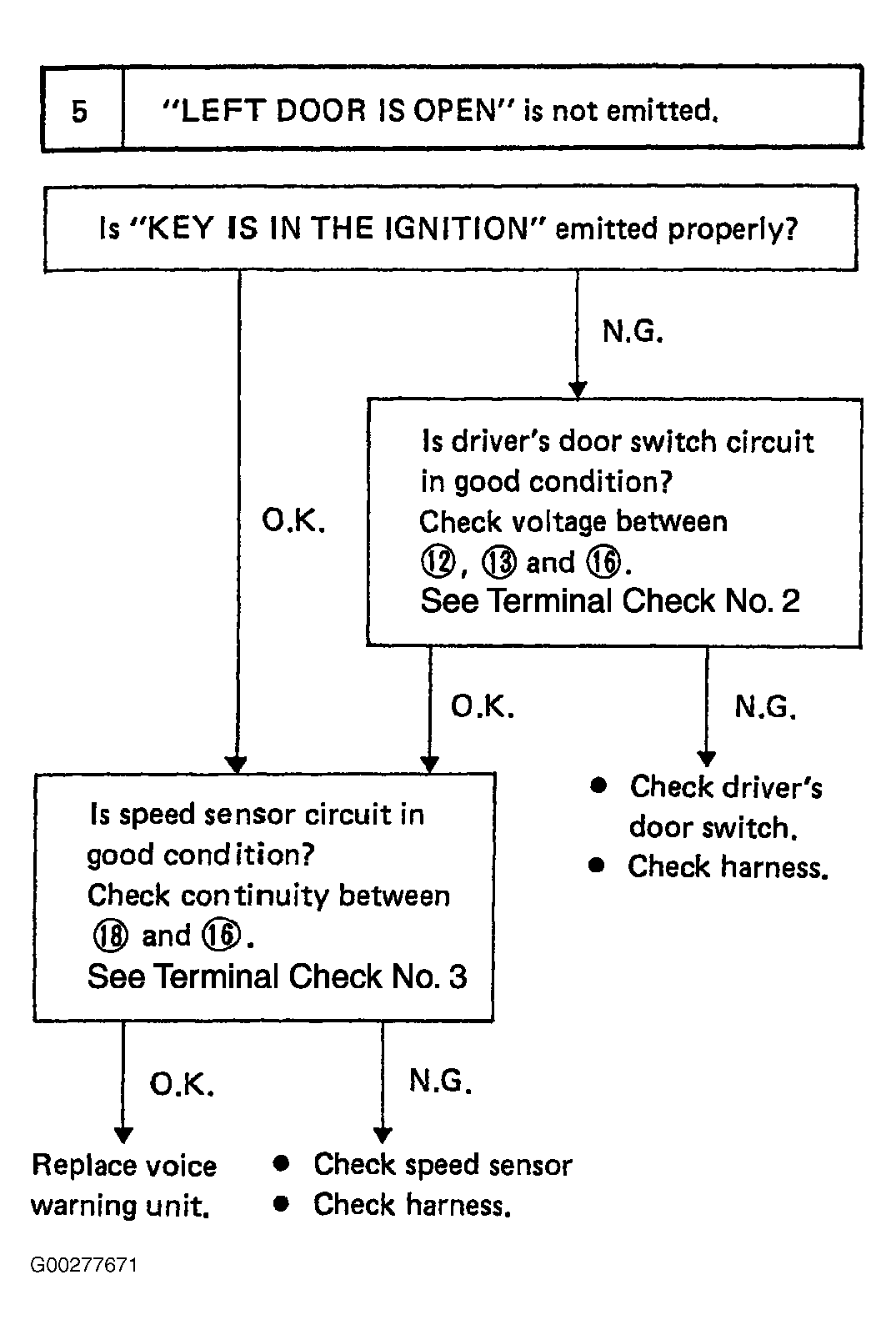

Fig 5: "Left Door Is Open" Is Not Emitted

Courtesy of NISSAN MOTOR CO., U.S.A.

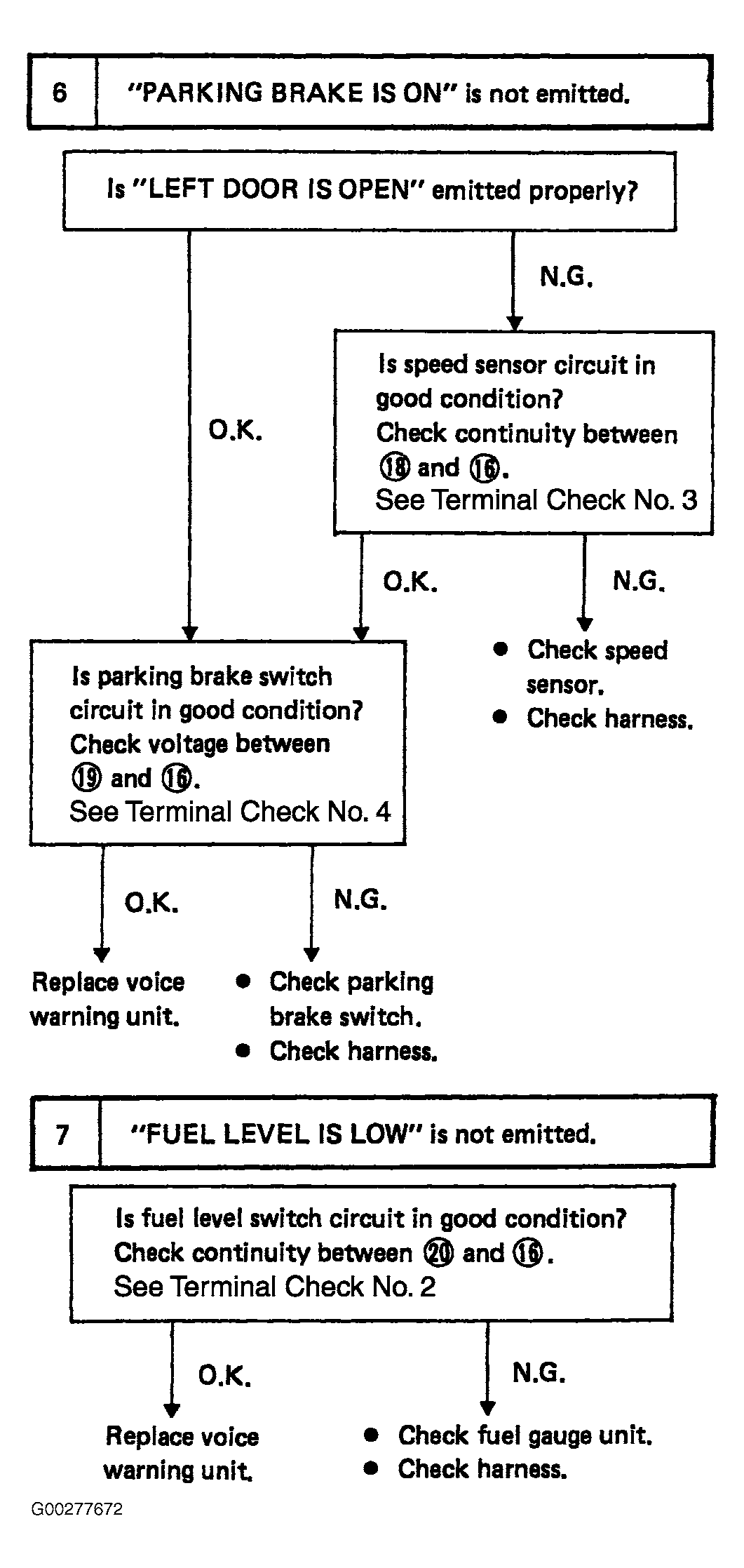

Fig 6: "Parking Brake Is On" Or "Fuel Level Is Low" Is Not Emitted

Courtesy of NISSAN MOTOR CO., U.S.A.
