Removal & Installation (Stanza)

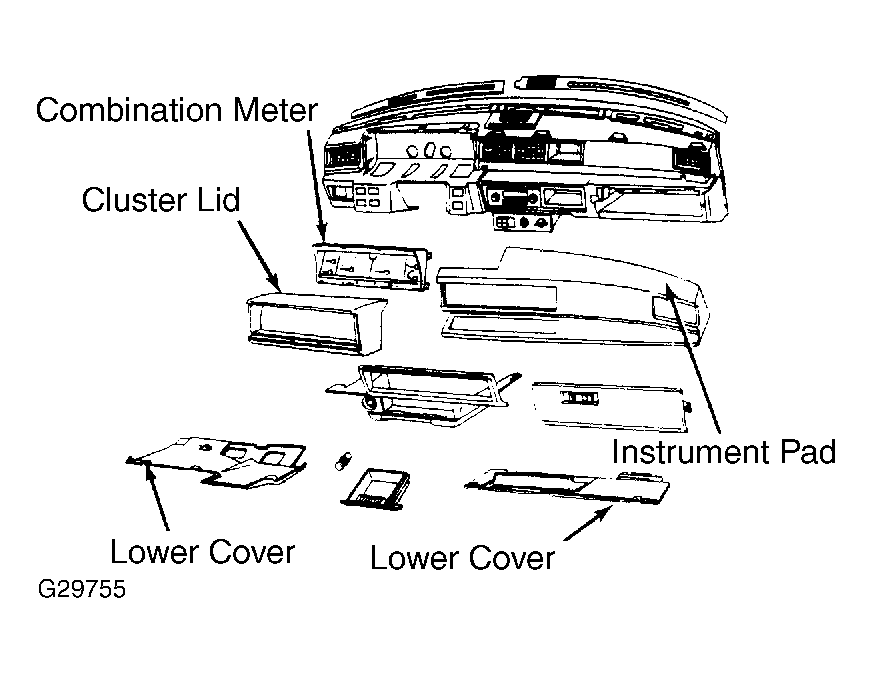

- Disconnect negative battery cable. Remove lower dash bezel from under steering column. Loosen tilt adjusting lever. Lower steering column. Remove steering column cover. Remove retaining screws and tilt cluster lid forward.
- Remove retaining screws and pull instrument cluster out. Release electrical connectors and speedometer cable. remove instrument cluster from dash. To install, reverse removal procedure.
