Removal & Installation (Sentra)

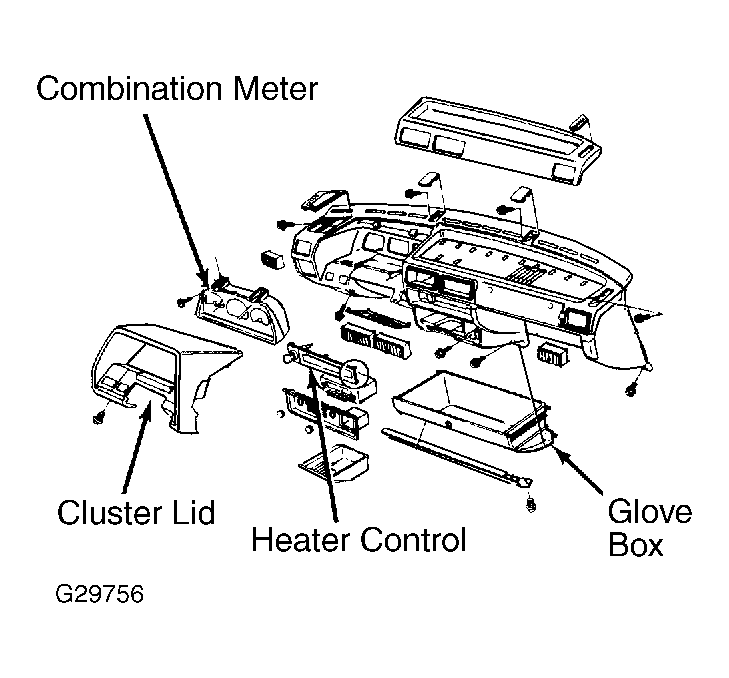

- Remove lower dash bezel from under steering column. Remove steering wheel and steering column cover. Remove combination switch. Remove screws attaching cluster lid located at base of cover.
- Remove screws attaching instrument cluster to dash. Release electrical connectors and speedometer cable. Remove instrument cluster from dash. To install, reverse removal procedure.
