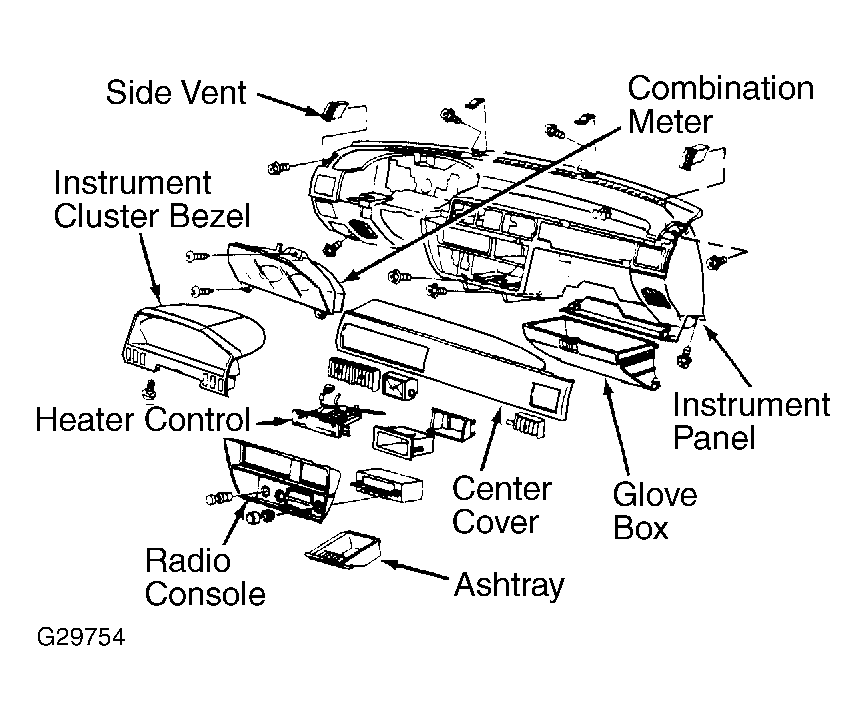

Removal & Installation (Pulsar)
- Disconnect battery ground. Remove lower dash bezel from under steering column. Remove steering wheel. Remove steering column cover. Remove turn signal switch. Remove screws attaching instrument cluster cover lid located at base of cover.
- Lift off cover lid. Remove screws attaching instrument cluster to dash. Release electrical connectors and speedometer cable. Remove instrument cluster from dash. To install, reverse removal procedures.
