Removal & Installation (Maxima)

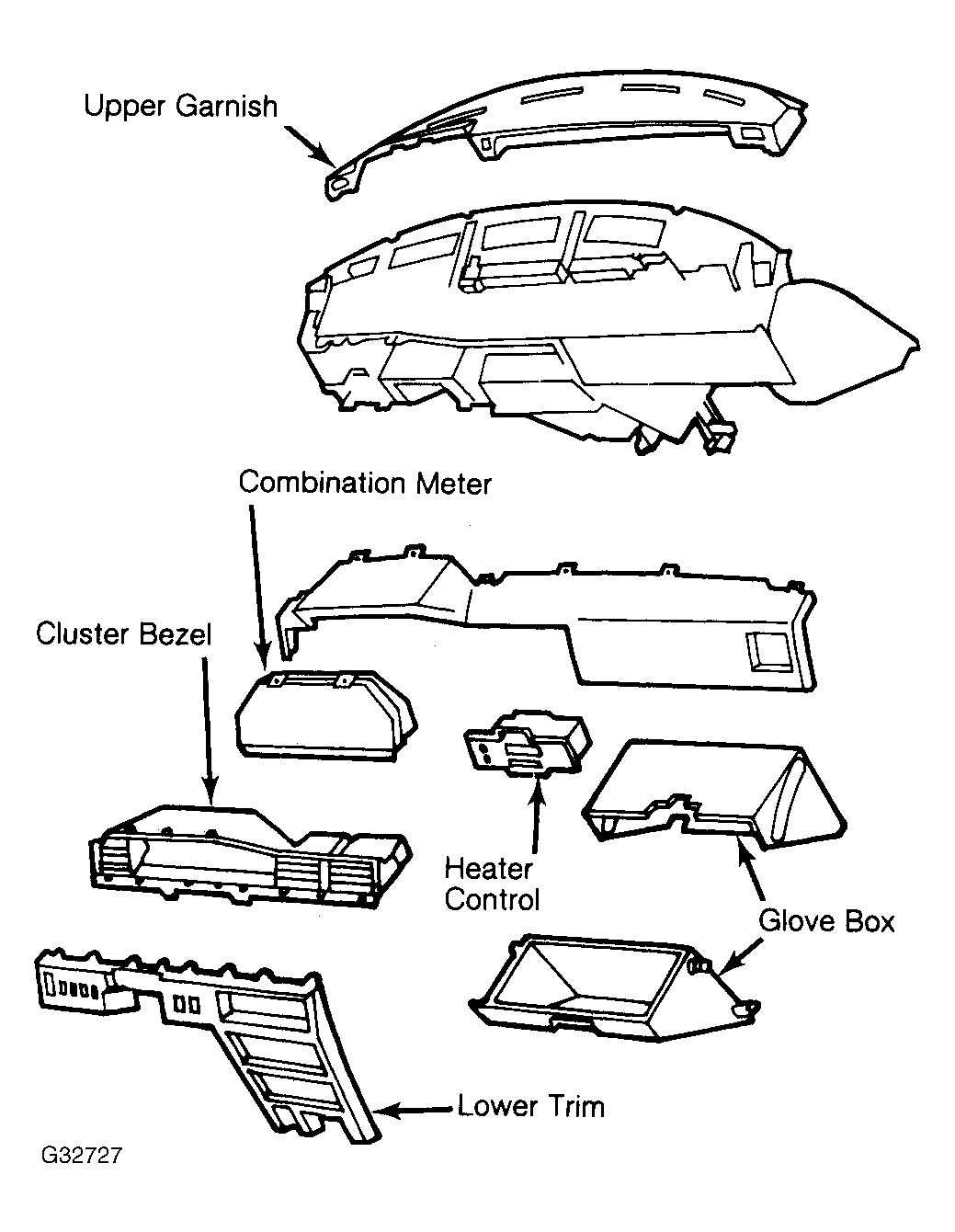

- Disconnect battery ground. Remove instrument panel upper garnish and heater control trim panel. Remove instrument panel trim under steering column and center of dash. Remove instrument cluster bezel with air vents.
- Remove screws attaching instrument cluster to dash. Release electrical connectors and speedometer cable. Remove instrument cluster from dash. To install, reverse removal procedures.
