Removal & Installation (300ZX)

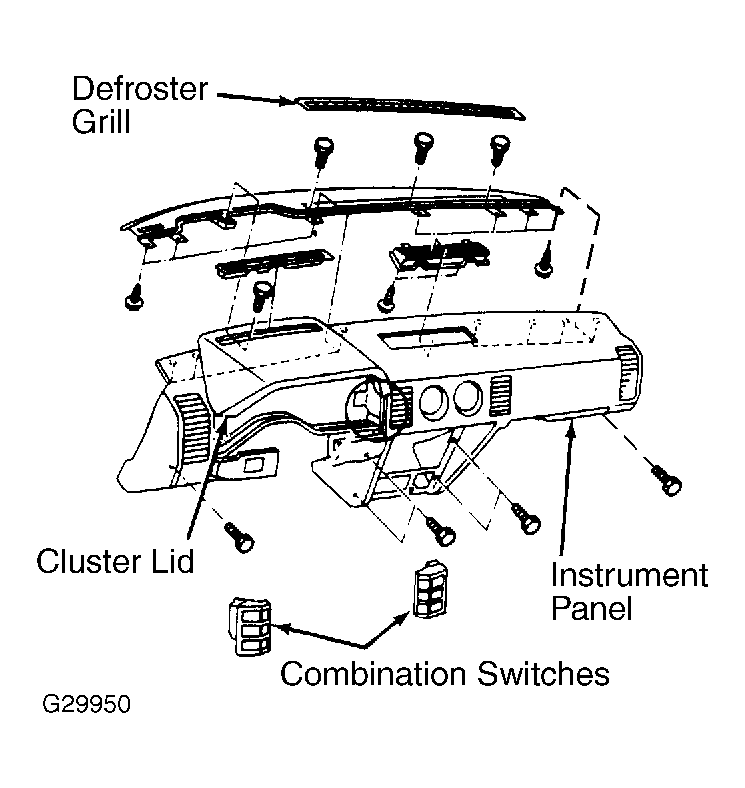

- Disconnect battery ground. Remove lower dash bezel from under steering column. Remove steering wheel. Remove steering column covers and turn signal switch. Remove nuts located behind combination switches on both sides of instrument cluster cover lid. Remove combination switches.
- Using a flat blade screwdriver, release locking stabs and remove defroster vent on top of instrument cover lid. Remove screws attaching instrument cluster to dash. Release electrical connectors and speedometer cable. Remove instrument cluster from dash. To install, reverse removal procedures.
