Removal & Installation (200SX)

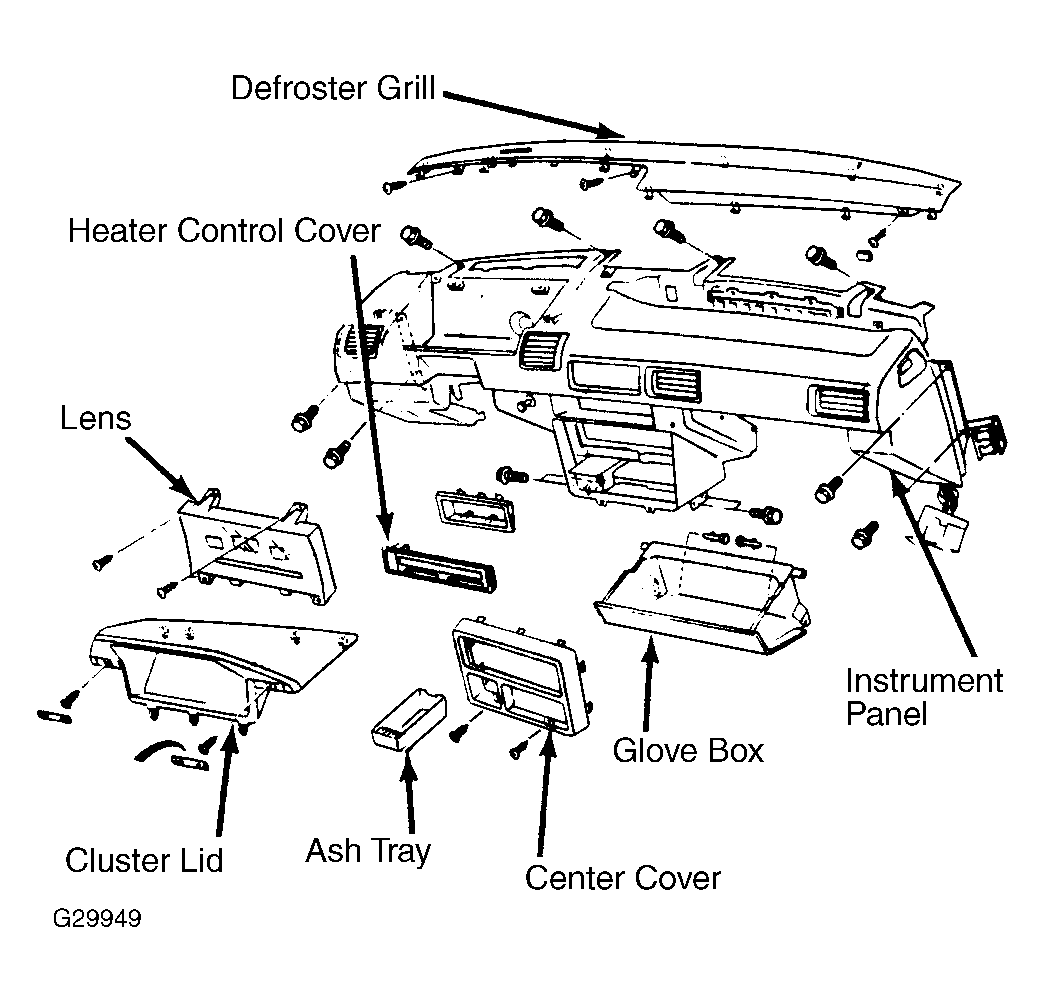

- Disconnect battery ground. Remove lower bezel from under steering column. Remove steering wheel. Remove steering column covers and turn signal switch. Remove covers located above vents on both sides of instrument cluster.
- Remove screws from behind covers and lift up on cover lid. Remove screws attaching instrument cluster to dash. Release electrical connectors. Remove instrument cluster from dash. Speedometer cable will release when instrument cluster is removed from dash. To install, reverse removal procedure.
