Removal & Installation (Stanza)

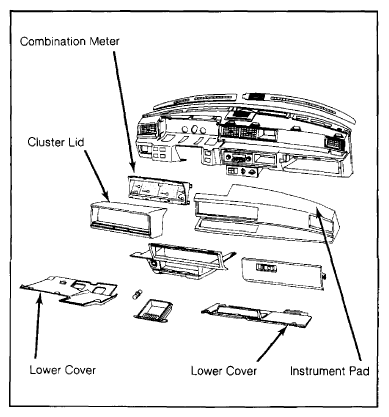

- Loosen tilt adjusting lever, and lower steering column completely. Remove steering column cover. Remove retaining screws and tilt cluster lid forward. Then slightly lift the cluster lid while releasing front nails.
- Remove retaining screws and pull instrument panel out. Disconnect speedometer cable and harness connectors, and remove instrument panel. To install, reverse removal procedure.
