Removal & Installation (Sentra)

Remove steering wheel and steering column cover. Remove attaching screws and cluster lid. Remove 4 attaching screws and pull out instrument panel out far enough to disconnect speedometer cable. Remove instrument panel. To install, reverse removal procedure.

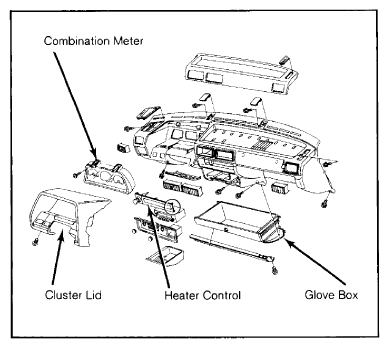

Fig 1: Exploded View of Sentra Instrument Panel
G09330307Courtesy of NISSAN NORTH AMERICA, INC.
