Removal & Installation (210)
- Disconnect battery ground. Remove steering wheel pad and wheel. Remove steering column cover. Remove panel light dimmer. Pull out heater knob and remove heater bezel. Remove heater screws.
- Pull off radio knobs and remove shaft nuts. Pull out ashtray and remove holder screws. Remove 3 screws above instruments, 1 screw on each side of column (under dash) and 1 screw at left edge of panel. Unplug all wiring and speedometer cable.
Courtesy of NISSAN NORTH AMERICA, INC.

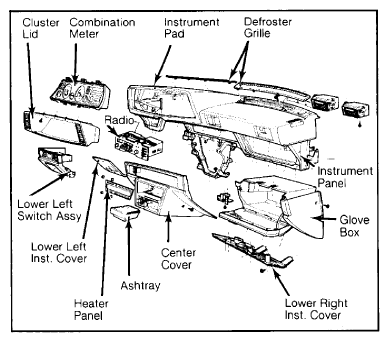

- Remove left half of instrument panel. Remove retaining screws and lift off combination meter assembly. Gauges can be removed after front bezel and mask are taken off. To install, reverse removal procedure.
