Secondary Throttle Initial Opening

With primary-to-secondary throttle connecting rod contacting end of slot in primary throttle lever, measure clearance between primary throttle plate and bore. If necessary, bend connecting rod to obtain specified clearance. See Fig 2.

Fig 1: Float Drop Adjustment

Courtesy of NOT AVAILABLE

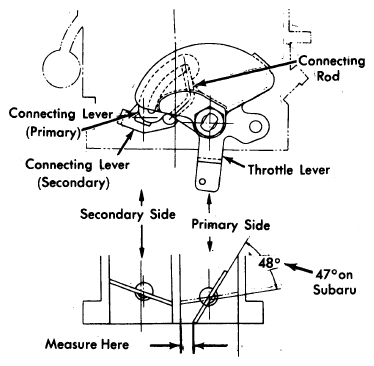

Fig 2: Secondary Throttle Initial Opening Adjustment

Courtesy of NOT AVAILABLE
