Float Drop

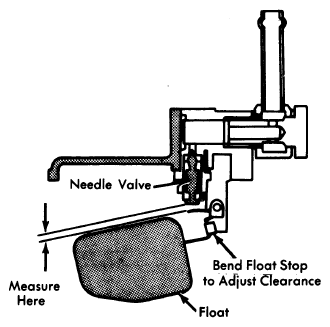

After checking float level, raise float until float stop contacts air horn projection. With float held up in this position, measure clearance between float tang and needle valve seat. See Figure. If clearance is incorrect, adjust by bending float stop.
