Parking Brake Switch Check
CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.
- Remove the floor console rear base (Refer to FLOOR CONSOLE ASSEMBLY ).

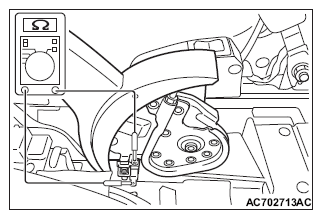

- Check for continuity between the parking brake switch terminal and the switch mounting bolt.
| Ceck condition | Normal condition |
|---|---|
| When parking brake lever is pulled. | Continuity exists (2 Ω or less) |
| When parking brake lever is released. | No continuity |
