DTC B1E27 Multichannel Driver CH3 Defective (Open/Short)

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the com-munication circuit are normal.

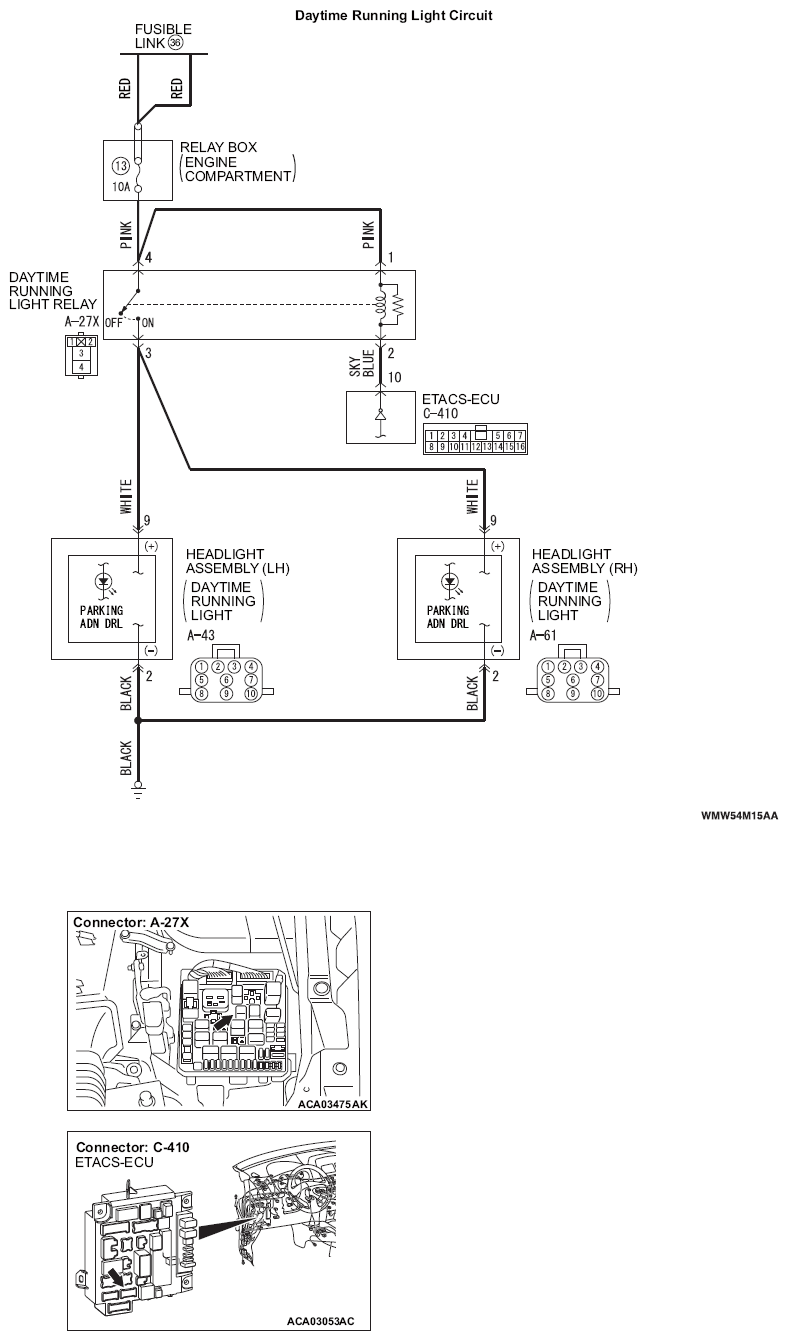

G14219746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
