>>B<< Exhaust Camshaft/Intake Camshaft/Camshaft Bearing Cap/Front Camshaft Bearing Cap Installation
- Install each camshaft, ensuring that the dowel pin faces the illustrated direction.
- Camshaft bearing caps (number 2 to 4) are identical. To avoid confusion (bearing cap number and intake/exhaust side), confirm each identification mark and face the front mark towards the direction shown in the illustration before installing them.
Identification mark (engraved on the front and bearing caps number 2 to 4)
I: Intake side
E: Exhaust side

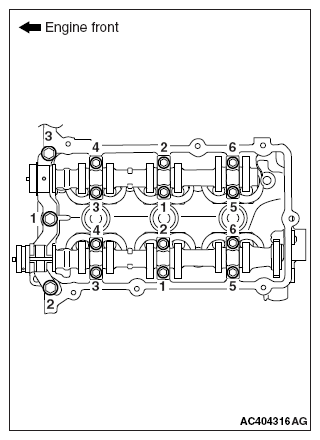

- Tighten each camshaft bearing cap mounting bolts to the specified torque in the order shown in the illustration, and then tighten the front camshaft bearing cap mounting bolts as well.
Tightening torque:
Camshaft bearing cap mounting bolts: 11 ± 1 N.m (97 ± 8 in-lb)
Front camshaft bearing cap mounting bolts: 20 ± 1 N.m (14.8 ± 0.7 ft-lb)
