Inspection Procedure 2: Light intensity cannot be adjusted using sunshade illumination changeover switch: Notes

CAUTION: Whenever the ECU is replaced, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

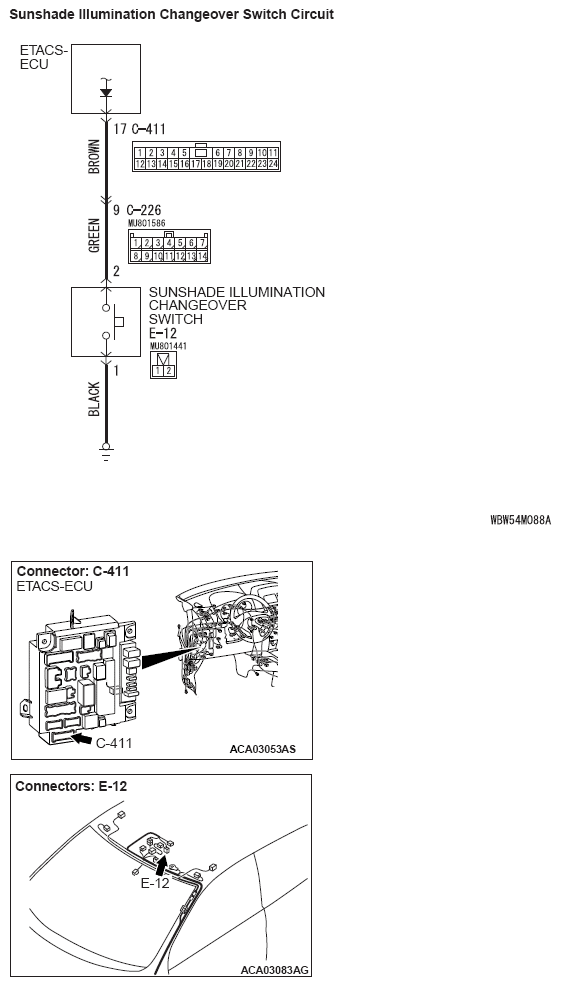

Fig 1: Sunshade Illumination Changeover Switch Circuit Diagram
G12157877Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
