DTC B2464: The sticking of meter information switch: Notes

CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.

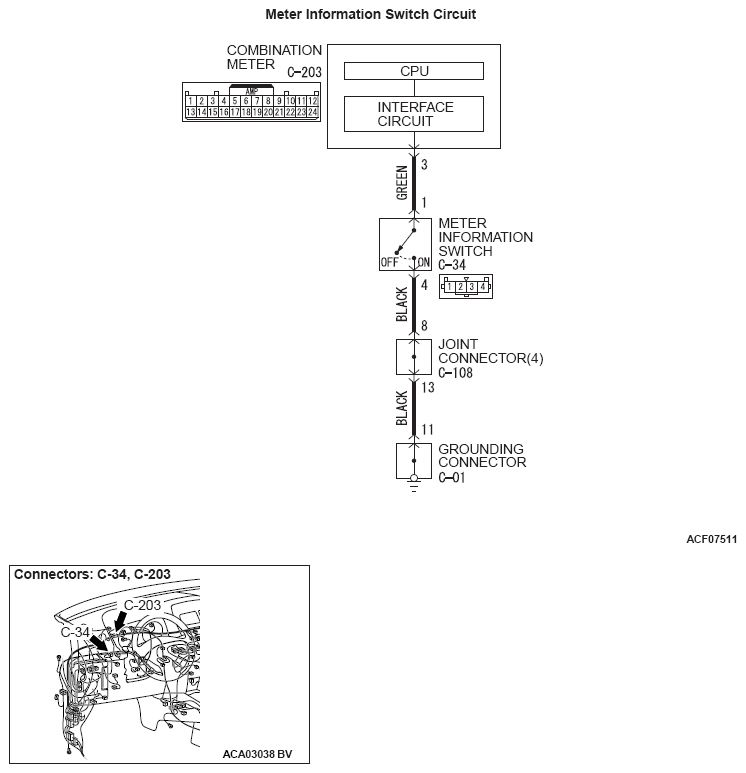

Fig 1: Meter Information Switch Circuit Diagram
G12156677Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
