Taillight Removal And Installation

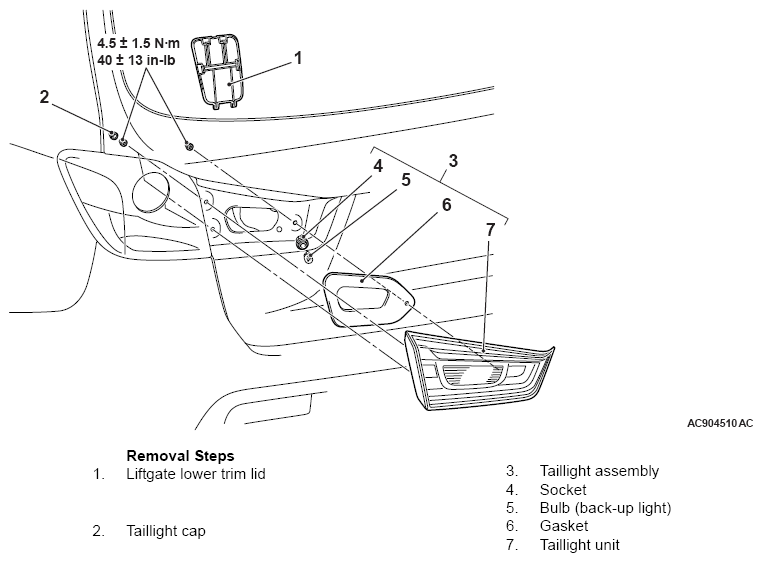

Fig 1: Removing/Installing Taillight Components With Torque Specification
G12157811Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
