Rear Combination Light - (With Diagnostics)
>>
On-Vehicle Service
>>
Rear Combination Light Removal And Installation
Rear Combination Light Removal And Installation

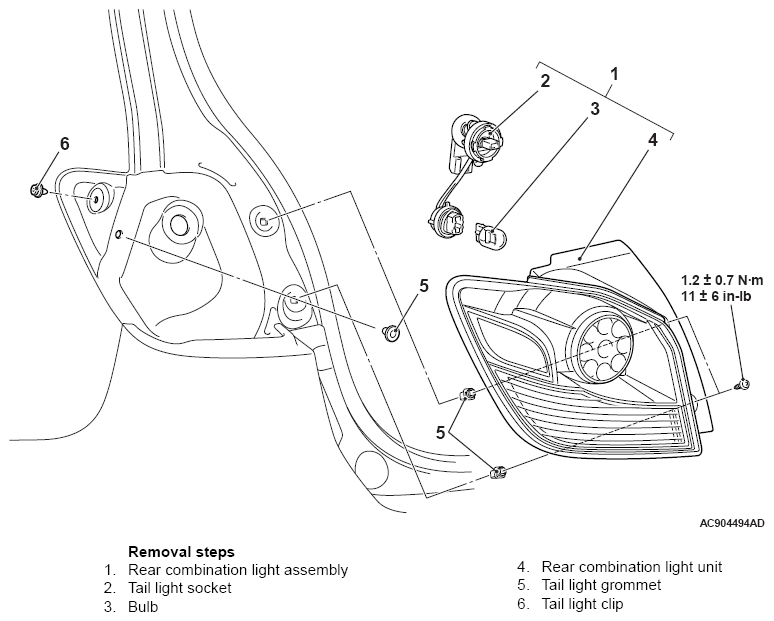

Fig 1: Removing/Installing Rear Combination Light Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
