Home >> Mitsubishi >> 2018 >> Outlander Sport LE, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Daytime Running Lights >> Symptom Procedures >> Inspection Procedure 2: One of the daytime running light assemblies does not illuminate normally >> Notes

Inspection Procedure 2: One of the daytime running light assemblies does not illuminate normally: Notes

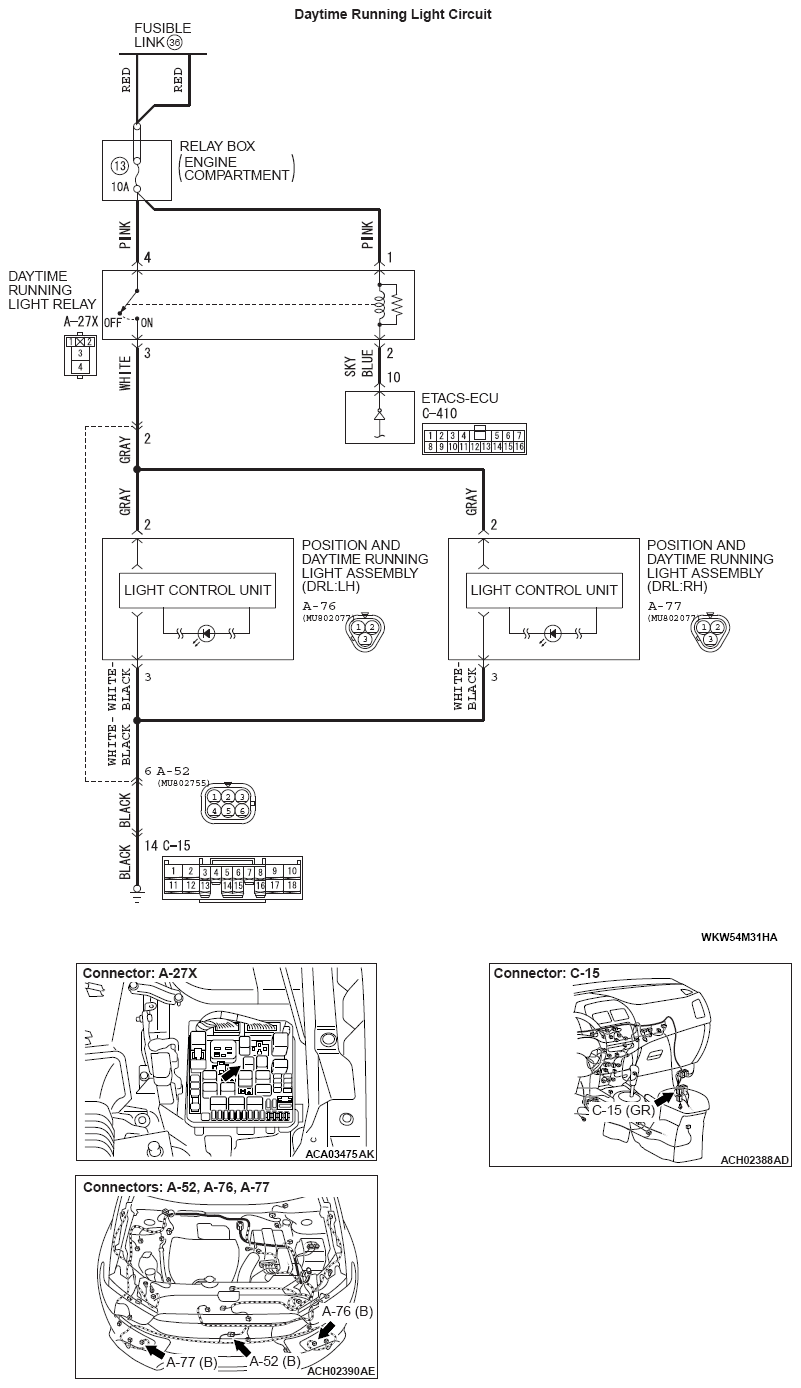

Fig 1: Daytime Running Light Circuit Diagram

G12157842

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
