Notes
Removal And Installation: Notes
Pre-removal Operation
Front Bumper Garnish Removal (Refer to Front Bumper
DISASSEMBLY AND ASSEMBLY
).
Front Bumper Side Cover Removal (Refer to Front Bumper
DISASSEMBLY AND ASSEMBLY
).
Post-installation Operation
Front Bumper Side Cover Installation (Refer to Front Bumper
DISASSEMBLY AND ASSEMBLY
).
Front Bumper Garnish Installation (Refer to Front Bumper
DISASSEMBLY AND ASSEMBLY
).
Check the beam direction of the front fog light (Refer to
FRONT FOG LIGHT AIMING
).

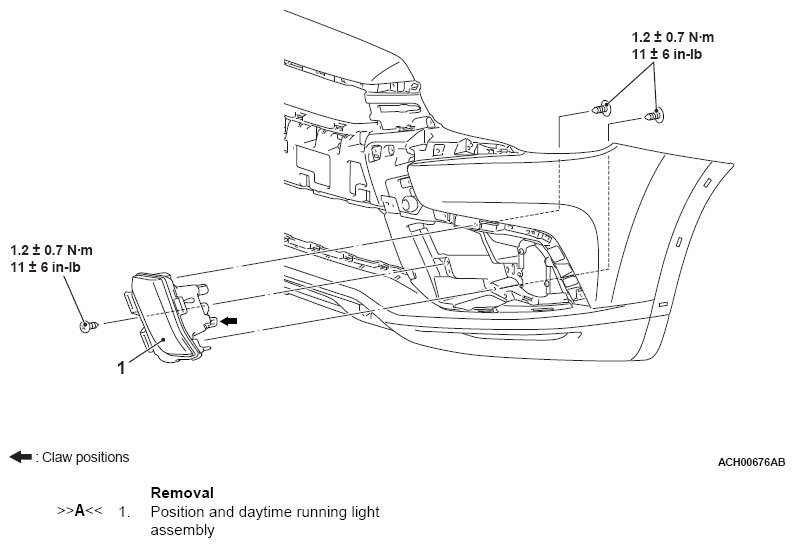

Fig 1: Removing/Installing Daytime Running Light Components With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
