Daytime Running Light Relay Check

Battery voltage Terminal number Normal conditions
Not energized 3 - 4 No continuity
With current supply (terminal 1 (+), terminal 2 (-)) Continuity exists (2 ohms or less)

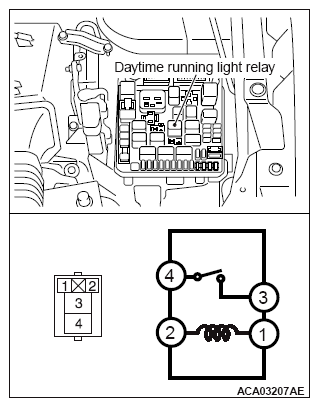

Fig 1: Checking Daytime Running Light Relay Circuit And Connector Terminals
G10232795Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
