DTC B1E27: Multichannel Driver CH3 Defective (Open/Short): Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

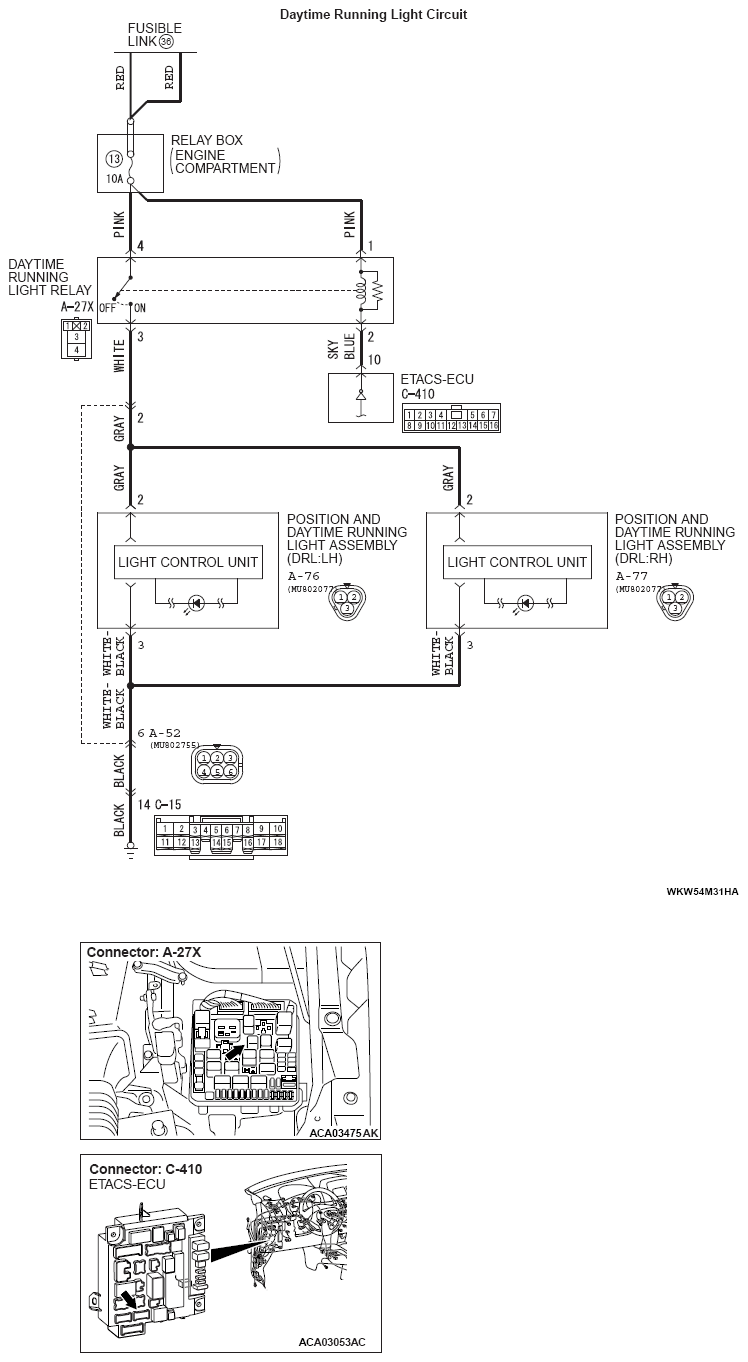

Fig 1: Daytime Running Light Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
