<< E >> Valve Stem Seal Removal

WARNING: This page is about a different variant/trim than selected.

Use special tool MB992085 to grip the base of the stem seal (where the outside diameter is larger) securely, and remove it by twisting it to the left and right.

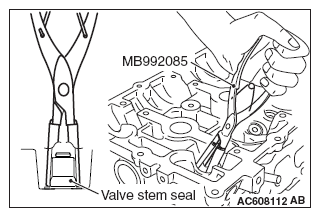

Fig 1: Removing Valve Stem Seal
G06480950Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
