<< E >> Engine Mounting Insulator Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: When supporting the engine assembly with a garage jack, be careful not to deform the engine oil pan.
  1. Place a garage jack against the engine oil pan with a piece of wood in between to support the engine assembly.
  2. Remove the special tool for holding the engine assembly, which has been set when the transaxle assembly is removed.
    • MB991928 or MB991895
    • MB991527
    • MB992201
  3. Operate a garage jack so that the engine weight is not applied to the engine mounting insulator, and remove the engine mounting insulator.

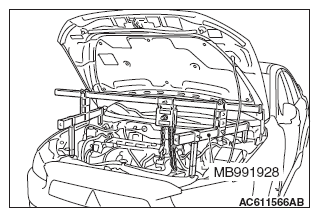

    Fig 1: Holding Engine Assembly Using Special Tool
    G09619063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

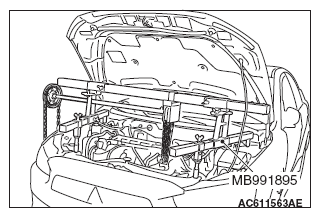

    Fig 2: Removing MB991928 And MB991895 Tool
    G09619064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 3: Removing MB991527 And MB992201 Tool
    G07027081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
