>> A << Crankshaft Pulley/Crankshaft Pulley Washer/Crankshaft Pulley Center Bolt Installation
WARNING: This page is about a different variant/trim than selected.
- Wipe off the dirt on the crankshaft and crankshaft pulley as shown in the figure using a rag.
- Wipe off the dirt on the crankshaft sprocket, crankshaft and crankshaft pulley as shown in the figure using a rag, and then degrease them.NOTE: Degrease them to prevent drop in the friction coefficient of the pressed area, which is caused by oil adhesion.
- Install the crankshaft pulley.
- Wipe off the dirt on the crankshaft pulley washer and crankshaft pulley center bolt as shown in the figure using a rag.
- Apply an adequate and minimum amount of engine oil to the threads of the crankshaft pulley center bolt and lower area of the flange.

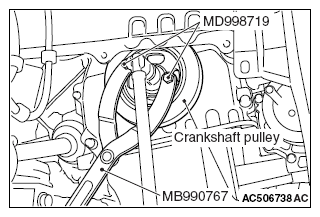

- Hold the crankshaft pulley with special tools MB990767 and MD998719 in the same manner as removal.
- Tighten the crankshaft pulley center bolt to the specified torque.
Tightening torque: 210 N.m (155 ft-lb)
