Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

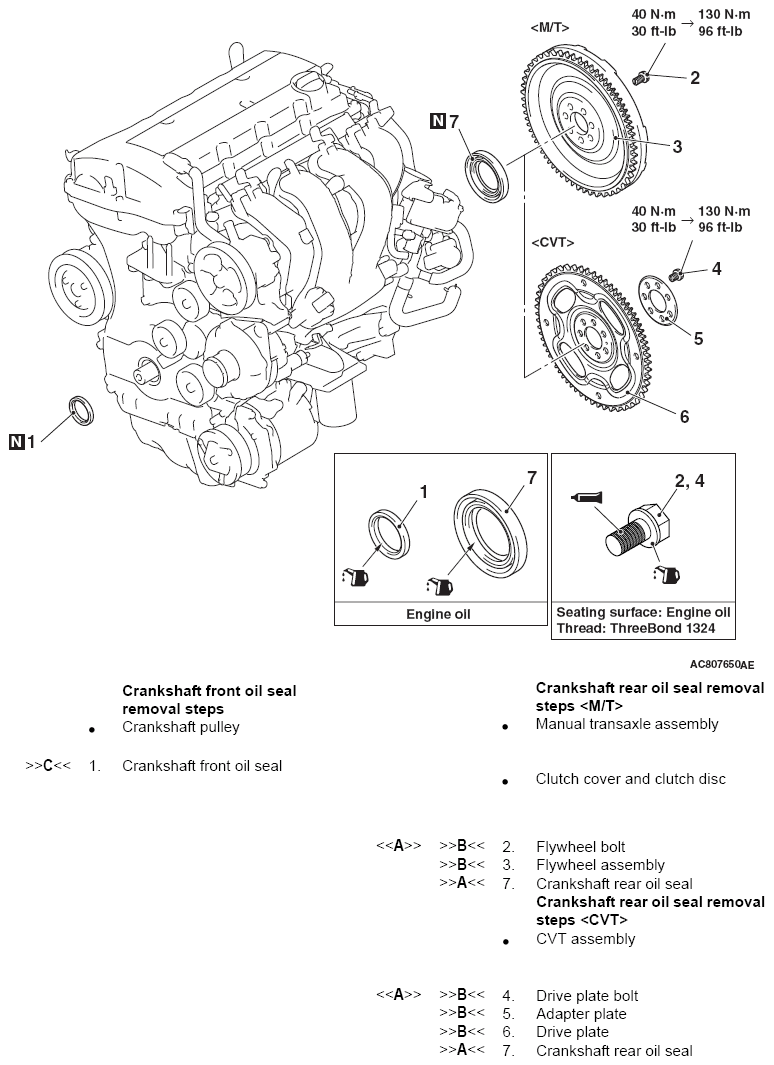

Fig 1: Crankshaft Oil Seal Related Components With Torque Specification
G09619008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
